Plastic screws
Application
Plastic screws
Screw type
Slotted head
Material
Nylon PC
Flame class
UL-94-V2

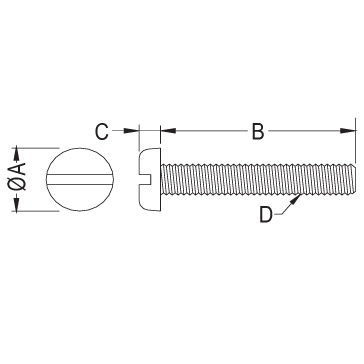

| Partnumber | A | B | C | Thread (D) |
|---|---|---|---|---|
| mm | ||||
| 28074061 | 6.9 | 15 | 2.2 | M3.5x0.6P |
| 28074063 | 6.9 | 25 | 2.2 | M3.5x0.6P |
| 28074064 | 6.9 | 30 | 2.2 | M3.5x0.6P |
| 28074060 | 6.9 | 10 | 2.2 | M3.5x0.6P |
| 28074062 | 6.9 | 20 | 2.2 | M3.5x0.6P |
