Plastic snap rivets
Application
Plastic snap rivets
Material
Nylon 66
Colour
Black White
Flame class
UL-94-V2

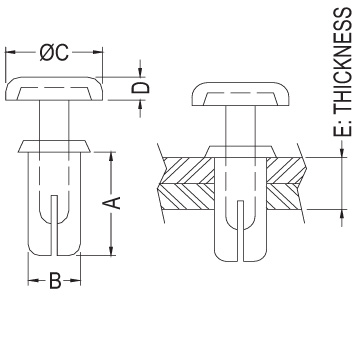

| Partnumber | A | B | C | D | E | Mounting holes |
|---|---|---|---|---|---|---|
| mm | ||||||
| 28070026 | 9 | 3.45 | 6.3 | 1.7 | 6 to 7 | 3.5 |
| 28070019 | 15.5 | 3 | 6.2 | 1.7 | 11.5 to 13 | 3 |
| 28070034 | 8.2 | 4 | 7.5 | 1.1 | 5.5 to 6.5 | 4 |
| 28070014 | 8.1 | 3 | 6.3 | 1.7 | 5.5 to 6.5 | 3 |
| 28070021 | 4.5 | 3.5 | 6.3 | 1.7 | 2 to 3 | 3.5 |
| 28070046 | 6.5 | 5 | 8.9 | 2.2 | 3.5 to 4.5 | 5 |
| 28070016 | 10 | 3 | 6.3 | 1.7 | 7.5 to 8.5 | 3 |
| 28070032 | 7 | 4 | 6.4 | 0.8 | 3.5 to 5 | 4 |
| 28070027 | 23 | 3.45 | 6.3 | 1.7 | 18.5 to 20 | 3.5 |
| 28070029 | 6.1 | 4 | 7.8 | 1.9 | 3.5 to 4.5 | 4 |
| 28070042 | 24.5 | 4 | 8 | 2 | 22 to 23 | 4 |
| 28070038 | 14.5 | 4 | 6.4 | 1 | 10 to 11 | 4 |
| 28070039 | 13.7 | 4 | 8 | 2 | 11 to 12 | 4 |
| 28070024 | 6 | 3.5 | 6.3 | 1.7 | 3 to 4 | 3.5 |
| 28070015 | 9.1 | 3 | 6.3 | 1.7 | 6.5 to 7.5 | 3 |
| 28070033 | 8.1 | 4 | 8 | 2 | 5.5 to 6.5 | 4 |
| 28070018 | 13 | 3.2 | 5.3 | 1.3 | 10 to 11 | 3.2 |
| 28070028 | 5 | 4 | 7.8 | 1.9 | 2.5 to 3.5 | 4 |
| 28070031 | 7.1 | 4 | 8 | 2 | 4.5 to 5.5 | 4 |
| 28070023 | 5.5 | 3.5 | 6.3 | 1.7 | 3 to 4 | 3.5 |
| 28070044 | 7 | 5 | 8.5 | 2.5 | 1.5 to 2.5 | 5 |
| 28070010 | 5.5 | 3 | 6.3 | 1.7 | 3 to 4 | 3 |
| 28070045 | 5.5 | 5 | 8.9 | 2.2 | 2.5 to 3.5 | 5 |
| 28070037 | 12 | 4 | 8 | 2 | 9.5 to 10.5 | 4 |
| 28070003 | 3.2 | 2.6 | 5 | 1.7 | 1 to 2 | 2.6 |
| 28070008 | 3.6 | 3 | 6.3 | 1.7 | 1 to 2 | 3 |
| 28070049 | 6 | 6 | 12 | 2.5 | 2.5 to 4 | 6 |
| 28070007 | 7.2 | 2.6 | 5 | 1.4 | 3 to 4.3 | 2.6 |
| 28070047 | 7.5 | 5 | 8.9 | 2.2 | 4.5 to 5.5 | 5 |
| 28070030 | 6.1 | 4 | 7.5 | 1.1 | 3 to 4 | 4 |
| 28070022 | 5 | 3.5 | 6.3 | 1.7 | 2.5 to 3.5 | 3.5 |
| 28070002 | 6 | 2 | 4.8 | 0.75 | 3.5 to 4.5 | 2 |
| 28070005 | 4.8 | 2.6 | 5 | 1.4 | 2.5 to 3.4 | 2.6 |
| 28070009 | 4.5 | 3 | 6.3 | 1.7 | 2 to 3 | 3 |
| 28070043 | 4.6 | 5 | 8.9 | 2.2 | 1.5 to 2.5 | 5 |
| 28070040 | 15.3 | 4 | 8 | 2 | 11.5 to 13 | 4 |
| 28070041 | 20 | 4 | 8 | 2 | 15 to 17 | 4 |
| 28070017 | 13 | 3 | 6.2 | 1.7 | 10 to 11 | 3 |
| 28070012 | 6.5 | 3 | 6.3 | 1.7 | 4 to 5 | 3 |
| 28070048 | 8.4 | 5 | 8.9 | 2.2 | 5.5 to 6.5 | 5 |
| 28070006 | 5.5 | 2.6 | 5 | 1.4 | 3 to 4.3 | 2.6 |
| 28070004 | 4.2 | 2.6 | 5 | 1.7 | 2 to 3 | 2.6 |
| 28070001 | 5 | 2 | 4.8 | 0.75 | 2.5 to 3.5 | 2 |
| 28070035 | 9 | 4 | 8 | 2 | 6.5 to 7.5 | 4 |
| 28070011 | 6 | 3 | 6.3 | 1.7 | 3.5 to 4.5 | 3 |
| 28070013 | 7.5 | 3 | 6.3 | 1.7 | 5 to 6 | 3 |
| 28070020 | 18.5 | 3 | 6.3 | 1.7 | 15 to 16.5 | 3 |
| 28070000 | 4 | 2 | 3.5 | 0.5 | 2 to 3 | 2 |
| 28070025 | 7 | 3.5 | 6.3 | 1.7 | 4.5 to 5.5 | 3.5 |
| 28070036 | 10 | 4 | 8 | 2 | 7.5 to 8.5 | 4 |
