Mounting button
Application
Plastic mounting buttons
Material
Nylon 66 POM
Colour
Black Naturel White
Flame class
94HB or UL94V2

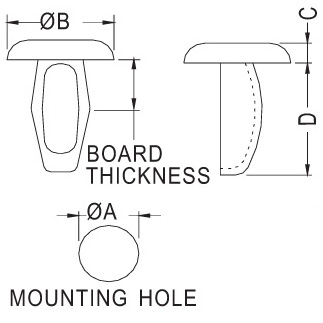

| Partnumber | A | B | C | D |
|---|---|---|---|---|
| mm | ||||
| 28070706 | 3.3 | 7.6 | 1.6 | 10.8 |
| 28070703 | 3.3 | 7.6 | 1.6 | 8.6 |
| 28070708 | 3 | 7.3 | 1.4 | 8.4 |
| 28070704 | 3.3 | 7.6 | 1.6 | 8.6 |
| 28070709 | 3 | 7.3 | 1.4 | 8.4 |
| 28070702 | 3.3 | 7.6 | 1.6 | 8.6 |
| 28070705 | 3.3 | 7.6 | 1.6 | 10.8 |
| 28070707 | 3.3 | 7.6 | 1.6 | 10.8 |
