Self-adhesive rubber feet
Mounting method
Self-adhesive
Material
Rubber
Colour
Black Grey

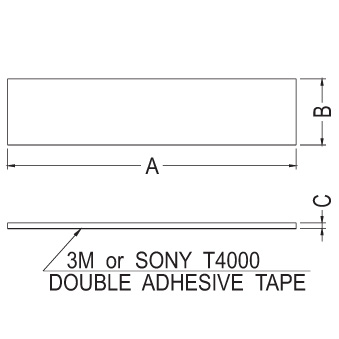

| Partnumber | A | B | C |
|---|---|---|---|
| mm | |||
| 28081358 | 25 | 5 | 5 |
| 28081368 | 27 | 18 | 1 |
| 28081469 | 540 | 2.9 | 0.8 |
| 28081340 | 20 | 5 | 6.3 |
| 28081353 | 22.6 | 7.6 | 4 |
| 28081390 | 33.5 | 11.5 | 2.5 |
| 28081383 | 31.5 | 15.5 | 1 |
| 28081345 | 20 | 10 | 2 |
| 28081403 | 40 | 10.5 | 4 |
| 28081330 | 19.7 | 8 | 1.5 |
| 28081343 | 20 | 10 | 1 |
| 28081389 | 33.3 | 23.3 | 8.5 |
| 28081409 | 45 | 10 | 2 |
| 28081453 | 140 | 5 | 2 |
| 28081413 | 49 | 12 | 1 |
| 28081282 | 9.6 | 8 | 5.5 |
| 28081337 | 20 | 4 | 2 |
| 28081463 | 250 | 5 | 1.5 |
| 28081419 | 58 | 25 | 1.4 |
| 28081434 | 70 | 20 | 1 |
| 28081293 | 11.5 | 8 | 3 |
| 28081418 | 58 | 25 | 0.8 |
| 28081417 | 55 | 5 | 1.5 |
| 28081329 | 19.7 | 8 | 1.4 |
| 28081421 | 60 | 6 | 1 |
| 28081437 | 84.6 | 52.6 | 0.8 |
| 28081438 | 88 | 8 | 1 |
| 28081301 | 12.5 | 10 | 1.5 |
| 28081322 | 18 | 9 | 3 |
| 28081442 | 99 | 9.9 | 1.5 |
| 28081296 | 12 | 8.5 | 1 |
| 28081320 | 17 | 5 | 2.5 |
| 28081435 | 76 | 40 | 0.5 |
| 28081377 | 30 | 12 | 3 |
| 28081424 | 60 | 6 | 4 |
| 28081388 | 33 | 20 | 5.5 |
| 28081441 | 99 | 3.5 | 5.5 |
| 28081354 | 23 | 7.6 | 4 |
| 28081445 | 110 | 5.6 | 4 |
| 28081428 | 60 | 17.5 | 3 |
| 28081431 | 65 | 40 | 3 |
| 28081366 | 26.8 | 5.5 | 1 |
| 28081348 | 20 | 14 | 6.5 |
| 28081375 | 30 | 11 | 2 |
| 28081291 | 10 | 8 | 5 |
| 28081464 | 250 | 65 | 2 |
| 28081429 | 60 | 20 | 10 |
| 28081410 | 47.5 | 3.5 | 3 |
| 28081308 | 14 | 4 | 3 |
| 28081311 | 15 | 6 | 1 |
| 28081290 | 10 | 8 | 2.5 |
| 28081319 | 16 | 5 | 3.6 |
| 28081398 | 36 | 18 | 2 |
| 28081412 | 48 | 44 | 1 |
| 28081335 | 20 | 2.5 | 1.5 |
| 28081369 | 27 | 18 | 2 |
| 28081391 | 34 | 2 | 2 |
| 28081374 | 30 | 8 | 3.8 |
| 28081274 | 7 | 3.5 | 1.2 |
| 28081456 | 145 | 105 | 2 |
| 28081420 | 58 | 25 | 1.6 |
| 28081459 | 150 | 10 | 0.5 |
| 28081376 | 30 | 11 | 4 |
| 28081304 | 13 | 7 | 3.5 |
| 28081457 | 146 | 10 | 1 |
| 28081378 | 30 | 12 | 5 |
| 28081300 | 12.5 | 8.5 | 1 |
| 28081351 | 21.5 | 8.6 | 0.4 |
| 28081361 | 25 | 8 | 1.5 |
| 28081287 | 10 | 5 | 1 |
| 28081384 | 31.5 | 15.5 | 1.5 |
| 28081395 | 35 | 15 | 8 |
| 28081422 | 60 | 6 | 1.3 |
| 28081334 | 19.7 | 20 | 1.5 |
| 28081461 | 160 | 6 | 1 |
| 28081394 | 35 | 10 | 1 |
| 28081397 | 36 | 18 | 1 |
| 28081272 | 7 | 2 | 1.6 |
| 28081365 | 25.4 | 12.7 | 3.2 |
| 28081455 | 140 | 25 | 1 |
| 28081310 | 15 | 3.2 | 2 |
| 28081297 | 12 | 9.5 | 1.5 |
| 28081393 | 34.7 | 9.7 | 1 |
| 28081338 | 20 | 5 | 1 |
| 28081288 | 10 | 5 | 2 |
| 28081355 | 23.7 | 6.5 | 1 |
| 28081408 | 44.5 | 20 | 10 |
| 28081302 | 13 | 6 | 2 |
| 28081414 | 50 | 6 | 2 |
| 28081404 | 40 | 12 | 3.5 |
| 28081269 | 6.5 | 2.8 | 4 |
| 28081454 | 140 | 10 | 1 |
| 28081331 | 19.7 | 9.7 | 2.3 |
| 28081279 | 8.5 | 3.5 | 2 |
| 28081452 | 134 | 2 | 2 |
| 28081305 | 13 | 7 | 4 |
| 28081306 | 13.5 | 8 | 5.5 |
| 28081402 | 40 | 9 | 3 |
| 28081336 | 20 | 4 | 1 |
| 28081276 | 7 | 6 | 2 |
| 28081341 | 20 | 5 | 6.8 |
| 28081449 | 125 | 46 | 2 |
| 28081386 | 32 | 17 | 2 |
| 28081416 | 54 | 10 | 1 |
| 28081468 | 310 | 12 | 5 |
| 28081443 | 100 | 12 | 3.5 |
| 28081280 | 8.5 | 3.5 | 2.5 |
| 28081370 | 27.5 | 9 | 3.2 |
| 28081433 | 70 | 18 | 2 |
| 28081294 | 11.8 | 7.8 | 1 |
| 28081436 | 80 | 10 | 0.5 |
| 28081324 | 18 | 10 | 2 |
| 28081313 | 15 | 1.9 | 3 |
| 28081352 | 22 | 16 | 1.5 |
| 28081400 | 40 | 9 | 1.5 |
| 28081332 | 19.7 | 9.7 | 2.5 |
| 28081303 | 13 | 6 | 3 |
| 28081357 | 25 | 5 | 3.5 |
| 28081425 | 60 | 9 | 0.7 |
| 28081447 | 111 | 10 | 0.9 |
| 28081315 | 15 | 50 | 3 |
| 28081292 | 10.5 | 7.2 | 3 |
| 28081299 | 12.5 | 6.5 | 3.5 |
| 28081318 | 16 | 3.5 | 3 |
| 28081270 | 6.5 | 2.8 | 5 |
| 28081426 | 60 | 10 | 1 |
| 28081430 | 65 | 20 | 2 |
| 28081387 | 32 | 17 | 2.5 |
| 28081444 | 107 | 58 | 1.5 |
| 28081458 | 150 | 7 | 1.2 |
| 28081316 | 15.8 | 5.6 | 1 |
| 28081440 | 98 | 8 | 3 |
| 28081427 | 60 | 10 | 2.5 |
| 28081295 | 12 | 5 | 6.5 |
| 28081286 | 10 | 4 | 0.9 |
| 28081323 | 18 | 10 | 1 |
| 28081314 | 15 | 25 | 3 |
| 28081347 | 20 | 10 | 5.6 |
| 28081379 | 30 | 15 | 2.5 |
| 28081298 | 12 | 15 | 3 |
| 28081439 | 95 | 12 | 3.2 |
| 28081326 | 19 | 5.7 | 2 |
| 28081277 | 8 | 6 | 2.5 |
| 28081344 | 20 | 10 | 1.5 |
| 28081448 | 120 | 3 | 1 |
| 28081307 | 13 | 2.5 | 2.5 |
| 28081266 | 5 | 4.5 | 3.5 |
| 28081321 | 17.2 | 4.3 | 3 |
| 28081317 | 15.8 | 10 | 2.5 |
| 28081289 | 10 | 7 | 1.2 |
| 28081325 | 19 | 5.6 | 4 |
| 28081268 | 6 | 4 | 2.5 |
| 28081372 | 30 | 3.5 | 5.5 |
| 28081271 | 7 | 2 | 1.5 |
| 28081312 | 15 | 10 | 1.6 |
| 28081446 | 110 | 10 | 1 |
| 28081346 | 20 | 10 | 3.5 |
| 28081392 | 34.6 | 9.5 | 0.4 |
| 28081467 | 310 | 11.6 | 5 |
| 28081415 | 50 | 10 | 3.8 |
| 28081396 | 35 | 25 | 0.8 |
| 28081432 | 70 | 5 | 2.5 |
| 28081382 | 30.5 | 11 | 7 |
| 28081367 | 27 | 8 | 3 |
| 28081360 | 25 | 8 | 1 |
| 28081285 | 10 | 3.5 | 1.2 |
| 28081385 | 32 | 6.7 | 2.25 |
| 28081333 | 19.7 | 9.7 | 3 |
| 28081328 | 19.7 | 7.7 | 6 |
| 28081460 | 150 | 15 | 1.5 |
| 28081283 | 9.9 | 6 | 1.6 |
| 28081405 | 40 | 12 | 4 |
| 28081465 | 270 | 165 | 0.5 |
| 28081356 | 24.8 | 6 | 1.1 |
| 28081399 | 39.5 | 5 | 0.9 |
| 28081281 | 8 | 4.5 | 2 |
| 28081411 | 48 | 10 | 4 |
| 28081450 | 130 | 20 | 3 |
| 28081327 | 19.7 | 7.7 | 4 |
| 28081423 | 60 | 6 | 2.5 |
| 28081267 | 6 | 2.3 | 1.3 |
| 28081363 | 25 | 12 | 3.5 |
| 28081339 | 20 | 5 | 1.5 |
| 28081381 | 30 | 25 | 1 |
| 28081364 | 25.4 | 12.7 | 2.4 |
| 28081278 | 8.5 | 2.5 | 3 |
| 28081309 | 14 | 4 | 4 |
| 28081401 | 40 | 9 | 2.4 |
| 28081451 | 130 | 20 | 2 |
| 28081342 | 20 | 7 | 2.5 |
| 28081359 | 25 | 7 | 6 |
| 28081406 | 40 | 12 | 5 |
| 28081373 | 30 | 9 | 0.9 |
| 28081407 | 40 | 17.5 | 1.5 |
| 28081275 | 7 | 4 | 2 |
| 28081466 | 258 | 14.5 | 2 |
| 28081273 | 7 | 3 | 0.4 |
| 28081380 | 30 | 20 | 2.5 |
| 28081371 | 30 | 6 | 4 |
| 28081284 | 10 | 1.9 | 1.9 |
| 28081350 | 20.5 | 6 | 1.2 |
| 28081362 | 25 | 8 | 2 |
| 28081462 | 166.5 | 49 | 3 |
| 28081349 | 20 | 15 | 1.5 |
