Earthing tapes, solderless pressed contact areas

Material

Braided copper tapes made out of annealed Cu-ETP wires.

Surface

Uncoated or tinned

Wire thickness

Ø 0.07mm (1.5-10mm²)

Wire thickness

Ø 0.16mm (14mm²)

Wire thickness

Ø 0.10mm (16-70mm²)

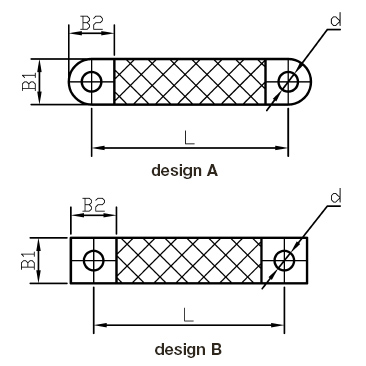

Partnumber	Design	Cross-section	B1	B2	L	d	Surface

41002749	A	10	15	15	as you choose	6.5	Uncoated
41002805	B	16	20	20	as you choose	9	Tinned
41002756	B	10	15	15	as you choose	6.5	Uncoated
41002758	B	16	20	20	as you choose	9	Uncoated
41002806	B	25	25	25	as you choose	9	Tinned
41002808	B	50	30	30	as you choose	9	Tinned
41002801	A	50	30	30	as you choose	9	Tinned
41002797	A	14	20	20	as you choose	9	Tinned
41002800	A	35	30	30	as you choose	9	Tinned
41002761	B	50	30	30	as you choose	9	Uncoated
41002803	B	10	15	15	as you choose	6.5	Tinned
41002809	B	70	40	40	as you choose	11	Tinned
41002798	A	16	20	20	as you choose	9	Tinned
41002802	A	70	40	40	as you choose	11	Tinned
41002757	B	14	20	20	as you choose	9	Uncoated
41002796	A	10	15	15	as you choose	6.5	Tinned
41002750	A	14	20	20	as you choose	9	Uncoated
41002751	A	16	20	20	as you choose	9	Uncoated
41002753	A	35	30	30	as you choose	9	Uncoated
41002799	A	25	25	25	as you choose	9	Tinned
41002760	B	35	30	30	as you choose	9	Uncoated
41002759	B	25	25	25	as you choose	9	Uncoated
41002807	B	35	30	30	as you choose	9	Tinned
41002762	B	70	40	40	as you choose	9	Uncoated
41002754	A	50	30	30	as you choose	9	Uncoated
41002804	B	14	20	20	as you choose	9	Tinned
41002752	A	25	25	25	as you choose	9	Uncoated
41002755	A	70	40	40	as you choose	11	Uncoated

We would be delighted to assemble these products for you.
