Material
Braided copper tapes made out of annealed Cu-ETP1 wires.
Surface
Tinned
Wire thickness
Ø 0.07mm (1.5-10mm²)
Wire thickness
Ø 0.10mm (16mm²)

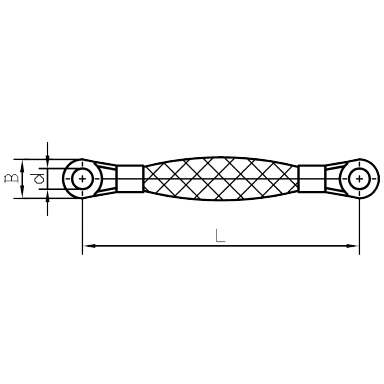

| Partnumber | Cross-section | B | L | d | Surface |
|---|---|---|---|---|---|
| 41002746 | 6 | 11 | 200 | 6.5 | Tinned |
| 41002747 | 10 | 11 | 200 | 6.5 | Tinned |
| 41002748 | 16 | 14 | 200 | 8.5 | Tinned |
| 41002745 | 4 | 10 | 160 | 5.3 | Tinned |
| 41002744 | 1.5 | 8 | 160 | 4.3 | Tinned |
