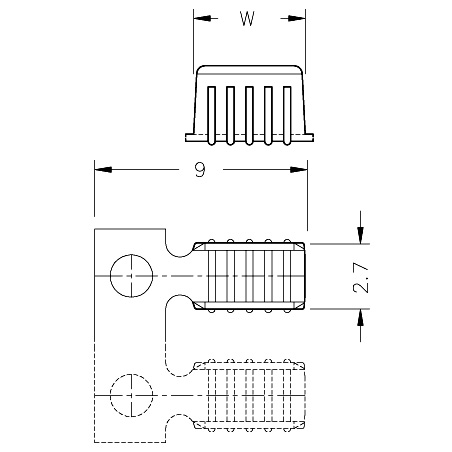

Wire end terminals on reel (2)
Terminal version
On reel
Terminal type
Wire end
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | W |
|---|---|---|---|---|---|---|
| 32513201 | 0.7 to 2.5 | 18-14 | Brass Pre-Sn | 0.5 | 6500 | 3.8 |
| 32513401 | 3.5 to 6.5 | 12-10 | Brass Pre-Sn | 0.5 | 2500 | 5.7 |
| 32513002 | 0.5 to 1.5 | 20-16 | Brass Sn | 0.3 | 20000 | 4.8 |
| 32513000 | 0.5 to 1.5 | 20-16 | Brass | 0.3 | 20000 | 4.8 |
| 32513200 | 0.7 to 2.5 | 18-14 | Brass | 0.5 | 6500 | 3.8 |
| 32513224 | 0.7 to 2.5 | 18-14 | Steel Ni | 0.5 | 6500 | 3.8 |
| 32513400 | 3.5 to 6.5 | 12-10 | Brass | 0.5 | 2500 | 5.7 |
| 32513024 | 0.5 to 1.5 | 20-16 | Steel Ni | 0.3 | 20000 | 4.8 |
| 32513424 | 3.5 to 6.5 | 12-10 | Steel Ni | 0.5 | 2500 | 5.7 |
