Twin wire end crimp terminals, polypropylene insulation, loose piece (2)

Twin wire end crimp terminals, with polypropylene insulation, loose piece

Terminal version

Loose piece

Terminal type

Wire end terminal

Approvals

CSA

Tools

16000712 - 30236112 - 30236116 - 30236117

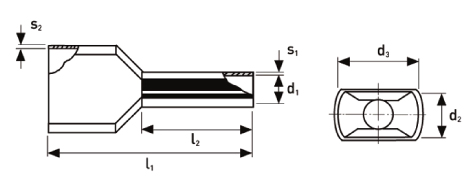

Partnumber	Wire size	Colour	L1	L2

12520070	16 to 16	Ivory	30	14
12520051	1 to 1	Red	25	18
12520073	1.5 to 1.5	Black	26	18
12520055	1 to 1	Red	15	8
12520062	10 to 10	Red	26	14
12520005	0.75 to 0.75	White	17	10
12520020	0.75 to 0.75	Grey	15	8
12520061	10 to 10	Ivory	26	14
12520056	1 to 1	Red	19	12
12520067	1.5 to 1.5	Black	20	12
12520045	2.5 to 2.5	Grey	18.5	10
12520004	0.75 to 0.75	White	15	8
12520077	2.5 to 2.5	Grey	21.5	13
12520043	0.75 to 0.75	Light blue	17	10
12520046	0.75 to 0.75	Light blue	15	8
12520059	6 to 6	Black	26	14
12520068	6 to 6	Green	26	14
12520047	2.5 to 2.5	Blue	18.5	10
12502996	0.5 to 0.5	Orange	15	8
12520041	1.5 to 1.5	Red	26	18
12520063	1.5 to 1.5	Black	16	8
12520069	10 to 10	Brown	26	14
12520023	0.75 to 0.75	Grey	17	10
12520014	1 to 1	Yellow	25	18
12520040	1.5 to 1.5	Red	20	12
12520064	16 to 16	Green	30	14
12520058	4 to 4	Grey	23	12
12520039	1.5 to 1.5	Red	16	8
12520057	4 to 4	Orange	23	12
12520065	16 to 16	Blue	30	14
12520013	1 to 1	Yellow	19	12
12520060	6 to 6	Yellow	26	14
12520019	0.5 to 0.5	White	15	8
12520012	1 to 1	Yellow	15	8
12520048	2.5 to 2.5	Blue	21.5	13

We would be delighted to assemble these products for you.
