Female quick disconnect, funnel entry vinyl insulation with copper sleeve, loose piece. Mating tab width 2.8
Terminal version
Loose piece
Terminal type
Receptacles
Mating tab width
2.8
Approvals
CSA UL
Tools
29218030 30236127 30236128
Dies
29218031 29218032 29218052

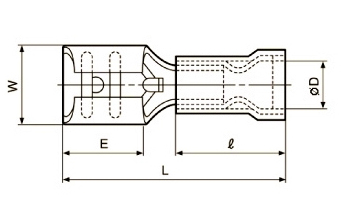

| Partnumber | Wire size | AWG | Colour | L | E | Ø D | l | Mat. thickn. | Tab thickn. | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 12601053 | 0.25 to 1.65 | 22-16 | Red | 19.4 | 6.4 | 3.6 | 11 | 0.25 | 0.8 | 3.7 |
| 12601054 | 0.25 to 1.65 | 22-16 | Red | 19.4 | 6.4 | 3.6 | 11 | 0.25 | 0.5 | 3.7 |
