Male bullet crimp terminals, vinyl insulation with copper sleeve underneath, loose piece
Terminal version
Loose piece
Terminal type
Round plugs & sockets
Approvals
CSA UR
Tools
29218030 30236127 30236128
Dies
29218031 29218032 29218052

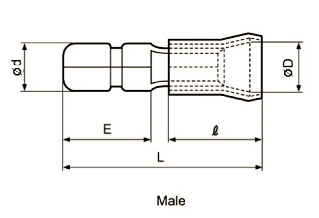

| Partnumber | Wire size | AWG | Colour | L | E | Ø D | l | Ø d1 | Mat. thickn. |
|---|---|---|---|---|---|---|---|---|---|
| 12601527 | 1.04 to 2.63 | 16-14 | Blue | 20.7 | 8.7 | 4.3 | 9.5 | 4.95 | 0.4 |
| 12601500 | 0.25 to 1.65 | 22-16 | Red | 20.2 | 8.7 | 3.5 | 9.5 | 3.96 | 0.4 |
| 12601519 | 1.04 to 2.63 | 16-14 | Blue | 20.2 | 8.7 | 4.3 | 9.5 | 3.96 | 0.4 |
