Butt crimp terminals, non-insulated, loose piece
Terminal version
Loose piece
Terminal type
Splices, butt
Approvals
CSA UL
Tools
30236126

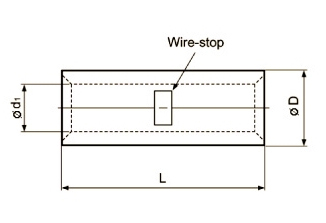

| Partnumber | Wire size | AWG | L | Ø D | Ø d1 |
|---|---|---|---|---|---|
| 12501460 | 6.64 to 10.52 | 8 | 15 | 7 | 4.5 |
| 12501654 | 0.25 to 1.65 | 22-16 | 15 | 3.3 | 1.7 |
| 12501666 | 2.63 to 6.64 | 16-10 | 15 | 5.4 | 3.4 |
| 12501662 | 1.04 to 2.63 | 16-14 | 15 | 4.1 | 2.3 |
