Terminal soft sleeves
Terminal version
Insulation boots & housings
Approvals
UL

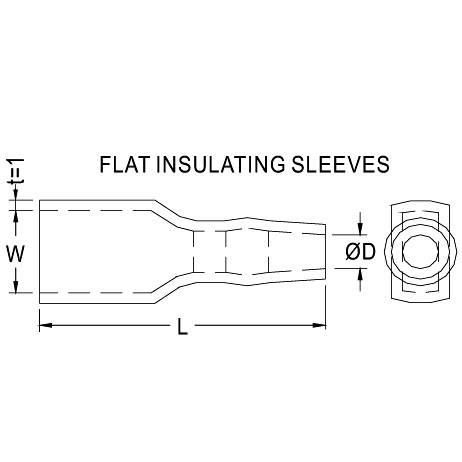

| Partnumber | Colour | Material | D | L | Wire size (O.D.) | W |
|---|---|---|---|---|---|---|
| 28046307 | Natural | PVC | 2.5 | 24 | 2.5 | 6 |
| 28046308 | Natural | PVC | 3 | 24 | 3 | 6 |
| 28046328 | Natural | PVC | 4 | 27 | 4 | 8 |
| 28046290 | Natural | PVC | 3 | 22 | 3 | 5.8 |
| 28046272 | Natural | PVC | 2.8 | 22 | 2.8 | 4 |
| 28046310 | Natural | PVC | 3.5 | 24 | 3.5 | 6 |
| 28046273 | Natural | PVC | 3 | 22 | 3 | 4 |
| 28046274 | Natural | PVC | 3.5 | 22 | 3 | 4 |
| 28046326 | Natural | PVC | 3 | 26 | 3 | 27.8 |
| 28046291 | Natural | PVC | 3.5 | 22 | 3.5 | 5.8 |
| 28046327 | Natural | PVC | 3.5 | 27 | 3.5 | 27.8 |
| 28046271 | Natural | PVC | 2.5 | 22 | 2.5 | 4 |
| 28046311 | Natural | PVC | 4 | 24 | 4 | 6 |
| 28046270 | Natural | PVC | 2 | 22 | 2 | 4 |
| 28046309 | Natural | PVC | 3 | 37 | 3 | 6 |
| 28046329 | Natural | PVC | 4.5 | 27 | 4.5 | 8 |
| 28046330 | Natural | PVC | 5 | 27 | 5 | 7.8 |
| 28046292 | Natural | PVC | 4 | 22 | 3.5 | 5.8 |
| 28046331 | Natural | PVC | 3.5 | 26 | 3.5 | 9.5 |
| 28046289 | Natural | PVC | 2.5 | 22 | 2.5 | 5.8 |
