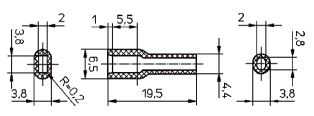

Plastic insulation boots for quick disconnect receptacles 2.8 mm
Mating tab width
2.8
Configuration
Straight
Terminal version
Insulation boots & housings
| Partnumber | Colour | Material | Operating temperature |
|---|---|---|---|
| 12700010 | Black | PVC | -25 to 75 °C |
| 12700029 | Transparent | PVC | -25 to 75 °C |
| 12700020 | Violet | PVC | -25 to 75 °C |
| 12700017 | Orange | PVC | -25 to 75 °C |
| 12700015 | Green | PVC | -25 to 75 °C |
| 12700021 | Grey | PVC | -25 to 75 °C |
| 12700019 | Red | PVC | -25 to 75 °C |
| 12700018 | Brown | PVC | -25 to 75 °C |
| 12700013 | White | PVC | -25 to 75 °C |
| 12700016 | White | PVC | -25 to 75 °C |
| 12700014 | Blue | PVC | -25 to 75 °C |
