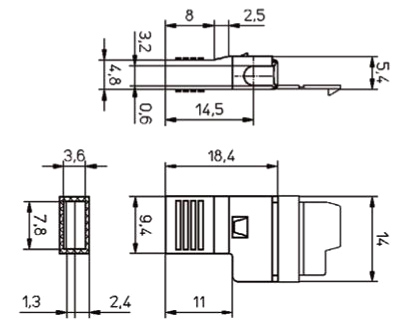

Plastic insulation boots for quick disconnect receptacles 6.3 mm
Mating tab width
6.3
Configuration
Right angle
Terminal version
Insulation boots & housings
| Partnumber | Colour | Material | Operating temperature |
|---|---|---|---|
| 12700568 | Natural | Polyamide 6.6 | -40 to 110 °C |
| 12700576 | Black | Polypropylene | -25 to 90 °C |
| 12700550 | Natural | Polyethylene | -50 to 85 °C |
