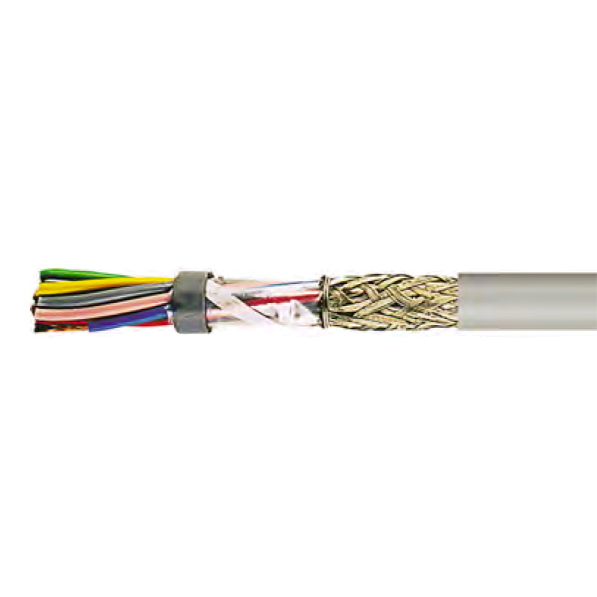

LiYCY UL / CSA multicore cables, shielded
Nom. voltage
300
Temperature
-5 to 70°C
Cable type
Multicore cable
Test voltage
core/core: 2500 V; core/shield: 1500
Norm
LiYCY
Conductor size
AWG 26-18
No. conductors
2 to 24
Technical characteristics
Shielded
Insulation colour
Grey
Core colours
DIN 47100
Norm & Approvals
CSA LiYY, LiYCY UL
Insulation material
PVC
Temperature max.
70°C
Insulation properties
Flame retardant Self-extinguishing
Approval
CSA UL
| Partnumber | Number inner cores | Conductor size |
|---|---|---|
| 47112012 | 12 | AWG 20 |
| 47112604 | 4 | AWG 26 |
| 47112606 | 6 | AWG 26 |
| 47111808 | 8 | AWG 18 |
| 47112016 | 16 | AWG 20 |
| 47111803 | 3 | AWG 18 |
| 47112406 | 6 | AWG 24 |
| 47112203 | 3 | AWG 22 |
| 47111806 | 6 | AWG 18 |
| 47112602 | 2 | AWG 26 |
| 47112616 | 16 | AWG 26 |
| 47112002 | 2 | AWG 20 |
| 47112224 | 24 | AWG 22 |
| 47112412 | 12 | AWG 24 |
| 47112408 | 8 | AWG 24 |
| 47112424 | 24 | AWG 24 |
| 47112205 | 5 | AWG 22 |
| 47112207 | 7 | AWG 22 |
| 47112410 | 10 | AWG 24 |
| 47112018 | 18 | AWG 20 |
| 47112418 | 18 | AWG 24 |
| 47112603 | 3 | AWG 26 |
| 47112006 | 6 | AWG 20 |
| 47112221 | 21 | AWG 22 |
| 47112403 | 3 | AWG 24 |
| 47112608 | 8 | AWG 26 |
| 47112208 | 8 | AWG 22 |
| 47112612 | 12 | AWG 26 |
| 47112008 | 8 | AWG 20 |
| 47112624 | 24 | AWG 26 |
| 47112010 | 10 | AWG 20 |
| 47112610 | 10 | AWG 26 |
| 47112402 | 2 | AWG 24 |
| 47112216 | 16 | AWG 22 |
| 47112005 | 5 | AWG 20 |
| 47112212 | 12 | AWG 22 |
| 47112405 | 5 | AWG 24 |
| 47112202 | 2 | AWG 22 |
| 47112618 | 18 | AWG 26 |
| 47112605 | 5 | AWG 26 |
| 47111804 | 4 | AWG 18 |
| 47112204 | 4 | AWG 22 |
| 47111802 | 2 | AWG 18 |
| 47112003 | 3 | AWG 20 |
| 47112416 | 16 | AWG 24 |
| 47112004 | 4 | AWG 20 |
| 47112024 | 24 | AWG 20 |
| 47112404 | 4 | AWG 24 |
