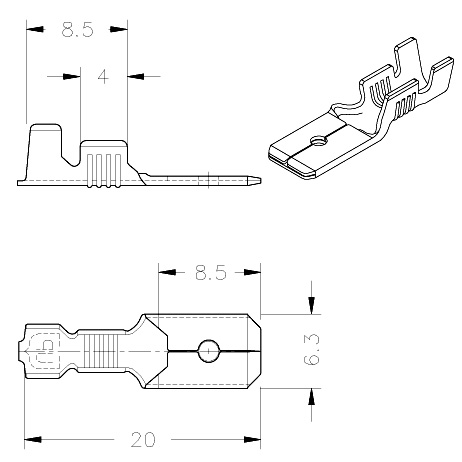

Tabs 6.3 (.250) series, standard
Terminal version
On reel
Terminal type
Tabs
Mating tab width
6.3
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32642201 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.4 | 7000 | 3 to 4.3 |
| 32642231 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.4 | 7000 | 3 to 4.3 |
| 32642230 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.4 | 7000 | 3 to 4.3 |
| 32642200 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.4 | 7000 | 3 to 4.3 |
| 32642202 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.4 | 7000 | 3 to 4.3 |
