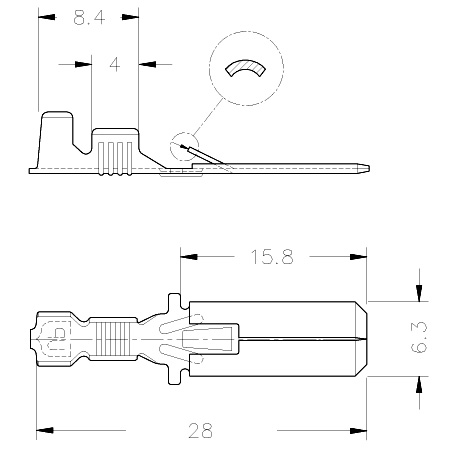

Tabs 6.3 (.250) series, for connector housings (1)
Terminal version
On reel
Terminal type
Tabs
Mating tab width
6.3
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32643200 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.4 | 5000 | 3 to 4.3 | UL |
| 32642431 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 1.8 to 2.5 | UL |
| 32642400 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.4 | 5000 | 1.8 to 2.5 | UL |
| 32643230 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.4 | 5000 | 3 to 4.3 | UL |
| 32642430 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.4 | 5000 | 1.8 to 2.5 | UL |
| 32642401 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 1.8 to 2.5 | UL |
| 32643201 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 3 to 4.3 | UL |
| 32643231 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 3 to 4.3 | UL |
