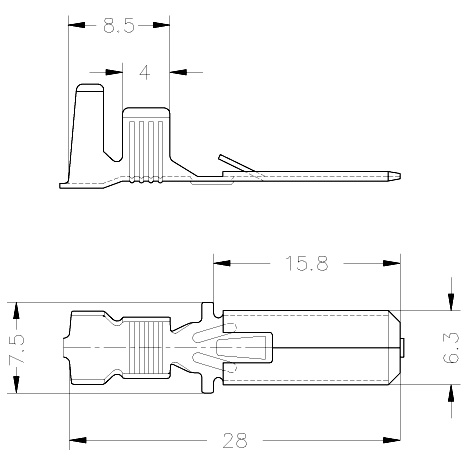

Tabs 6.3 (.250) series, for connector housings (3)
Terminal version
On reel
Terminal type
Tabs
Mating tab width
6.3
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32643801 | 2.5 to 6 | 14-10 | 0.8 | Brass Pre-Sn | 0.4 | 3500 | 3.8 to 6 | UL |
| 32643830 | 2.5 to 6 | 14-10 | 0.8 | Bronze | 0.4 | 3500 | 3.8 to 6 | UL |
| 32643800 | 2.5 to 6 | 14-10 | 0.8 | Brass | 0.4 | 3500 | 3.8 to 6 | UL |
| 32643831 | 2.5 to 6 | 14-10 | 0.8 | Bronze Pre-Sn | 0.4 | 3500 | 3.8 to 6 | UL |
