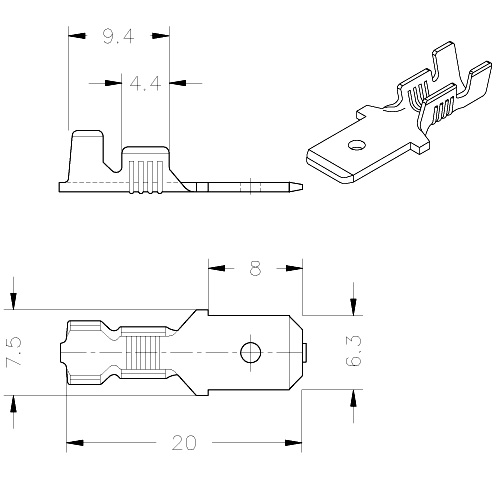

Tabs 6.3 (.250) series, standard
Terminal version
On reel
Terminal type
Tabs
Mating tab width
6.3
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32642002 | 0.75 to 1.5 | 18-16 | 0.8 | Brass Sn | 0.8 | 7000 | 2.4 to 3.3 |
| 32642000 | 0.75 to 1.5 | 18-16 | 0.8 | Brass | 0.8 | 7000 | 2.4 to 3.3 |
