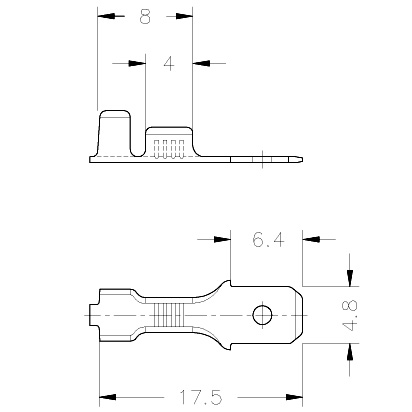

Tabs 4.8 (.187) series, Piggy-back, standard
Terminal version
On reel
Terminal type
Tabs
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32641200 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.5 | 4500 | 1.8 to 2.5 | UL |
| 32641301 | 0.75 to 2 | 18-14 | 0.5 | Brass Pre-Sn | 0.5 | 4000 | 2.5 to 3.5 | UL |
| 32641201 | 0.5 to 1 | 20-18 | 0.5 | Brass Pre-Sn | 0.5 | 4500 | 1.8 to 2.5 | UL |
| 32641300 | 0.75 to 2 | 18-14 | 0.5 | Brass | 0.5 | 4000 | 2.5 to 3.5 | UL |
| 32641202 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.5 | 4500 | 1.8 to 2.5 | UL |
| 32641302 | 0.75 to 2 | 18-14 | 0.5 | Brass Pre-Sn | 0.5 | 4000 | 2.5 to 3.5 | UL |
