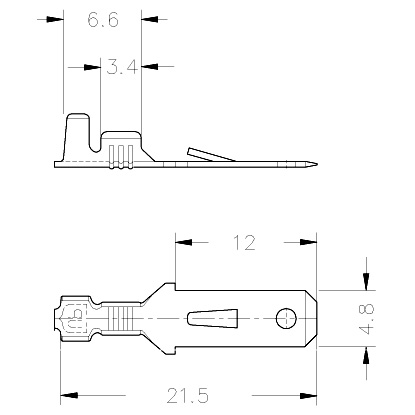

Tabs 4.8 (.187) series, Piggy-back, standard, for connector housings
Terminal version
On reel
Terminal type
Tabs
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32641600 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.5 | 8000 | 1.8 to 2.5 |
| 32641602 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.5 | 8000 | 1.8 to 2.5 |
