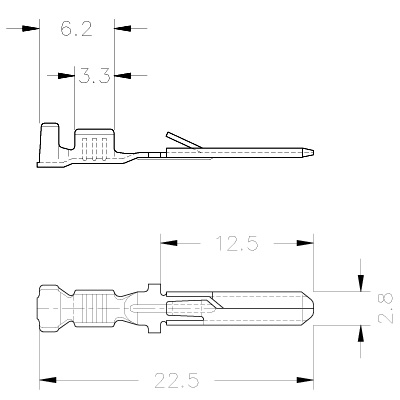

Tabs 2.8 (.110) series, standard, for housings
Terminal version
On reel
Terminal type
Tabs
Mating tab width
2.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32940230 | 0.3 to 0.6 | 22-20 | 0.8 | Bronze | 0.4 | 5000 | 1.4 to 2.3 |
| 32940200 | 0.3 to 0.6 | 22-20 | 0.8 | Brass | 0.4 | 5000 | 1.4 to 2.3 |
| 32940830 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.4 | 4000 | 2.3 to 3.3 |
| 32640201 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 2.3 to 3.3 |
| 32940801 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.4 | 4000 | 2.3 to 3.3 |
| 32640200 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.4 | 5000 | 2.3 to 3.3 |
| 32640231 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 2.3 to 3.3 |
| 32940831 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.4 | 4000 | 2.3 to 3.3 |
| 32640230 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.4 | 5000 | 2.3 to 3.3 |
| 32940201 | 0.3 to 0.6 | 22-20 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 1.4 to 2.3 |
| 32940231 | 0.3 to 0.6 | 22-20 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 1.4 to 2.3 |
| 32940800 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.4 | 4000 | 2.3 to 3.3 |
