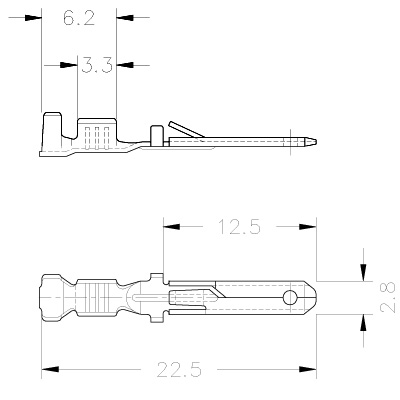

Tabs 2.8 (.110) series, standard, for housings
Terminal version
On reel
Terminal type
Tabs
Mating tab width
2.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32640331 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 2.3 to 3.3 |
| 32640701 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 1.4 to 2.3 |
| 32640731 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.4 | 5000 | 1.4 to 2.3 |
| 32640730 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.4 | 5000 | 1.4 to 2.3 |
| 32640300 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.4 | 5000 | 2.3 to 3.3 |
| 32640301 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.4 | 5000 | 2.3 to 3.3 |
| 32640700 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.4 | 5000 | 1.4 to 2.3 |
| 32640330 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.4 | 5000 | 2.3 to 3.3 |
