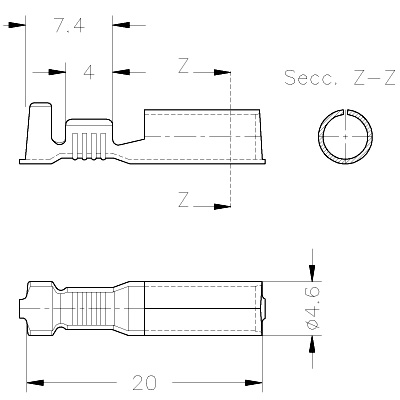

Straight round sockets (3)
Terminal version
On reel
Terminal type
Round plugs & sockets
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32850201 | 1 to 2.5 | 18-14 | Brass Pre-Sn | 0.35 | 8000 | 3 to 4.3 | 4 | UL |
| 32850001 | 0.5 to 1 | 20-18 | Brass Pre-Sn | 0.35 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32850002 | 0.5 to 1 | 20-18 | Brass Sn | 0.35 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32850032 | 0.5 to 1 | 20-18 | Bronze Sn | 0.35 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32850232 | 1 to 2.5 | 18-14 | Bronze Sn | 0.35 | 8000 | 3 to 4.3 | 4 | UL |
| 32850202 | 1 to 2.5 | 18-14 | Brass Sn | 0.35 | 8000 | 3 to 4.3 | 4 | UL |
| 32850230 | 1 to 2.5 | 18-14 | Bronze | 0.35 | 8000 | 3 to 4.3 | 4 | UL |
| 32850200 | 1 to 2.5 | 18-14 | Brass | 0.35 | 8000 | 3 to 4.3 | 4 | UL |
| 32850000 | 0.5 to 1 | 20-18 | Brass | 0.35 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32850030 | 0.5 to 1 | 20-18 | Bronze | 0.35 | 8000 | 1.8 to 2.5 | 4 | UL |
