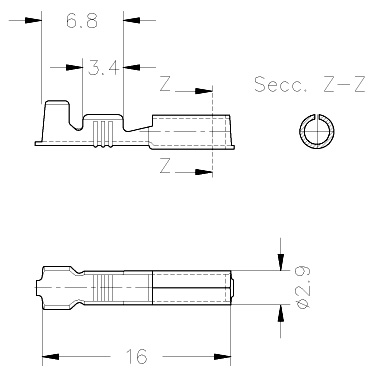

Straight round sockets (2)
Terminal version
On reel
Terminal type
Round plugs & sockets
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32850400 | 0.5 to 1 | 20-18 | Brass | 0.3 | 15000 | 1.8 to 2.5 | 2.3 | UL |
| 32850432 | 0.5 to 1 | 20-18 | Bronze Sn | 0.3 | 15000 | 1.8 to 2.5 | 2.3 | UL |
| 32850430 | 0.5 to 1 | 20-18 | Bronze | 0.3 | 15000 | 1.8 to 2.5 | 2.3 | UL |
| 32850402 | 0.5 to 1 | 20-18 | Brass Sn | 0.3 | 15000 | 1.8 to 2.5 | 2.3 | UL |
