Round plugs (2)
Terminal version
On reel
Terminal type

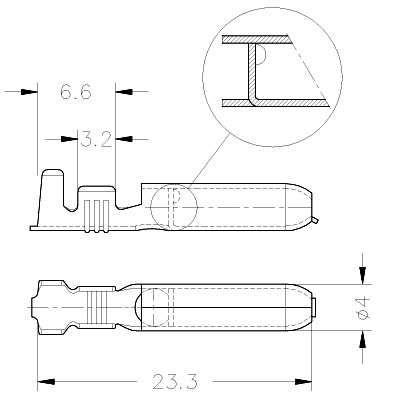

Round plugs & sockets
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32750002 | 0.5 to 1 | 20-18 | Brass Sn | 0.4 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32750000 | 0.5 to 1 | 20-18 | Brass | 0.4 | 8000 | 1.8 to 2.5 | 4 | UL |
| 32750001 | 0.5 to 1 | 20-18 | Brass Pre-Sn | 0.4 | 8000 | 1.8 to 2.5 | 4 | UL |
