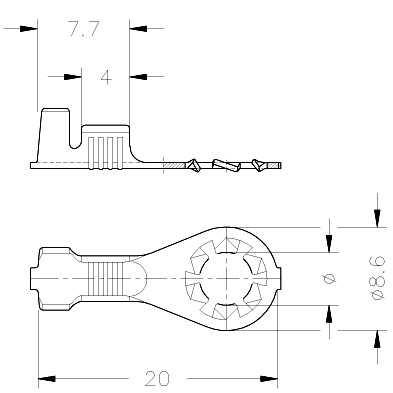

Ring form, locking type (1) 8.6 mm plate
Terminal version
On reel
Terminal type
Tongue type, ring form
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32337502 | 0.75 to 2 | 18-14 | Brass Sn | 0.5 | 7000 | 2.5 to 3.5 | 4.3 | UL |
| 32337524 | 0.75 to 2 | 18-14 | Steel Ni | 0.5 | 7000 | 2.5 to 3.5 | 4.3 | UL |
| 32337724 | 0.75 to 2 | 18-14 | Steel Ni | 0.5 | 7000 | 2.5 to 3.5 | 5.3 | UL |
| 32337702 | 0.75 to 2 | 18-14 | Brass Sn | 0.5 | 7000 | 2.5 to 3.5 | 5.3 | UL |
| 32337700 | 0.75 to 2 | 18-14 | Brass | 0.5 | 7000 | 2.5 to 3.5 | 5.3 | UL |
| 32337500 | 0.75 to 2 | 18-14 | Brass | 0.5 | 7000 | 2.5 to 3.5 | 4.3 | UL |
