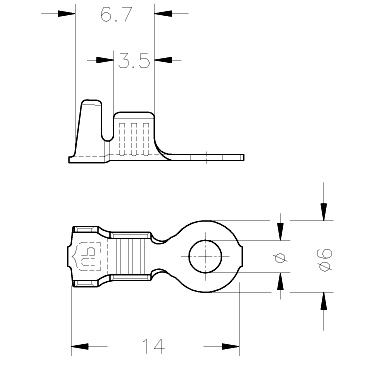

Ring form (06) 6 mm plate
Terminal version
On reel
Terminal type
Tongue type, ring form
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø |
|---|---|---|---|---|---|---|---|
| 32345200 | 0.75 to 2 | 18-14 | Brass | 0.5 | 12000 | 2.5 to 3.5 | 3.7 |
| 32345202 | 0.75 to 2 | 18-14 | Brass Sn | 0.5 | 12000 | 2.5 to 3.5 | 3.7 |
| 32345230 | 0.75 to 2 | 18-14 | Bronze | 0.5 | 12000 | 2.5 to 3.5 | 3.7 |
| 32345224 | 0.75 to 2 | 18-14 | Steel Ni | 0.5 | 12000 | 2.5 to 3.5 | 3.7 |
| 32345232 | 0.75 to 2 | 18-14 | Bronze Sn | 0.5 | 12000 | 2.5 to 3.5 | 3.7 |
