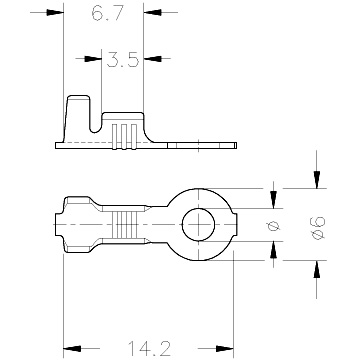

Ring form (05) 6 mm plate
Terminal version
On reel
Terminal type
Tongue type, ring form
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø |
|---|---|---|---|---|---|---|---|
| 32343431 | 0.5 to 1 | 20-18 | Bronze Pre-Sn | 0.5 | 10000 | 1.8 to 2.5 | 3.6 |
| 32343402 | 0.5 to 1 | 20-18 | Brass Sn | 0.5 | 10000 | 1.8 to 2.5 | 3.6 |
| 32343424 | 0.5 to 1 | 20-18 | Steel Ni | 0.5 | 10000 | 1.8 to 2.5 | 3.6 |
| 32343400 | 0.5 to 1 | 20-18 | Brass | 0.5 | 10000 | 1.8 to 2.5 | 3.6 |
| 32343430 | 0.5 to 1 | 20-18 | Bronze | 0.5 | 10000 | 1.8 to 2.5 | 3.6 |
