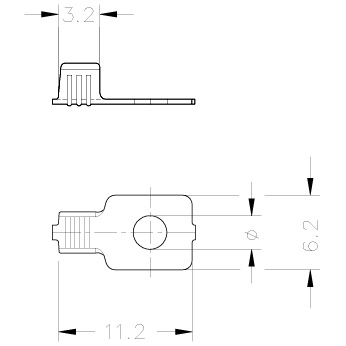

Ring form (01) 6 mm plate
Terminal version
On reel
Terminal type
Tongue type, ring form
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø |
|---|---|---|---|---|---|---|
| 32365230 | 0.5 to 1.5 | 20-16 | Bronze | 0.4 | 20000 | 3.2 |
| 32365200 | 0.5 to 1.5 | 20-16 | Brass | 0.4 | 20000 | 3.2 |
| 32365432 | 0.5 to 1.5 | 20-16 | Bronze Sn | 0.4 | 20000 | 3.7 |
| 32365202 | 0.5 to 1.5 | 20-16 | Brass Sn | 0.4 | 20000 | 3.2 |
| 32365232 | 0.5 to 1.5 | 20-16 | Bronze Sn | 0.4 | 20000 | 3.2 |
| 32365000 | 0.5 to 1.5 | 20-16 | Brass | 0.4 | 20000 | 2.8 |
| 32365400 | 0.5 to 1.5 | 20-16 | Brass | 0.4 | 20000 | 3.7 |
| 32365402 | 0.5 to 1.5 | 20-16 | Brass Sn | 0.4 | 20000 | 3.7 |
| 32365032 | 0.5 to 1.5 | 20-16 | Bronze Sn | 0.4 | 20000 | 2.8 |
| 32365030 | 0.5 to 1.5 | 20-16 | Bronze | 0.4 | 20000 | 2.8 |
| 32365430 | 0.5 to 1.5 | 20-16 | Bronze | 0.4 | 20000 | 3.7 |
| 32365002 | 0.5 to 1.5 | 20-16 | Brass Sn | 0.4 | 20000 | 2.8 |
