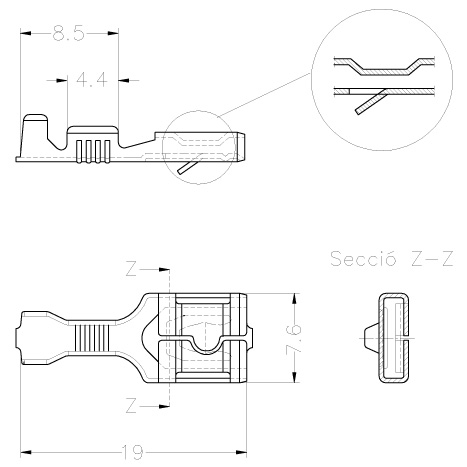

Receptacles 6.3 (.250) series, straight type, for connector housings, Low insertion force. Without upper dimple
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
6.3
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32412330 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.4 | 7000 | 3 to 4.3 |
| 32412130 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.4 | 8000 | 1.8 to 2.5 |
| 32412530 | 2.5 to 5 | 14-10 | 0.8 | Bronze | 0.4 | 6000 | 3.6 to 5 |
| 32412131 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.4 | 8000 | 1.8 to 2.5 |
| 32412331 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.4 | 7000 | 3 to 4.3 |
| 32412302 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.4 | 7000 | 3 to 4.3 |
| 32412100 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.4 | 8000 | 1.8 to 2.5 |
| 32412501 | 2.5 to 5 | 14-10 | 0.8 | Brass Pre-Sn | 0.4 | 6000 | 3.6 to 5 |
| 32412524 | 2.5 to 5 | 14-10 | 0.8 | Steel Ni | 0.4 | 6000 | 3.6 to 5 |
| 32412500 | 2.5 to 5 | 14-10 | 0.8 | Brass | 0.4 | 6000 | 3.6 to 5 |
| 32412502 | 2.5 to 5 | 14-10 | 0.8 | Brass Sn | 0.4 | 6000 | 3.6 to 5 |
| 32412300 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.4 | 7000 | 3 to 4.3 |
| 32412324 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.4 | 7000 | 3 to 4.3 |
| 32412124 | 0.5 to 1 | 20-18 | 0.8 | Steel Ni | 0.4 | 8000 | 1.8 to 2.5 |
| 32412531 | 2.5 to 5 | 14-10 | 0.8 | Bronze Pre-Sn | 0.4 | 6000 | 3.6 to 5 |
| 32412102 | 0.5 to 1 | 20-18 | 0.8 | Brass Sn | 0.4 | 8000 | 1.8 to 2.5 |
| 32412301 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.4 | 7000 | 3 to 4.3 |
| 32412101 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.4 | 8000 | 1.8 to 2.5 |
