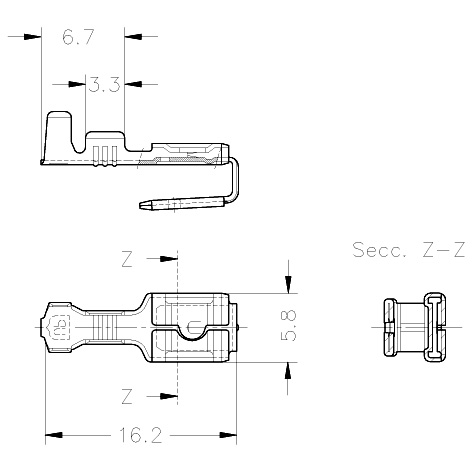

Receptacles 478 (.187) series, Piggy-back, low insertion
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32521424 | 0.5 to 1.5 | 20-16 | 0.8 | Steel Ni | 0.4 | 2500 | 1.8 to 3.3 |
| 32521800 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.4 | 2500 | 3 to 4.3 |
| 32521400 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.4 | 2500 | 1.8 to 3.3 |
| 32521601 | 1 to 2.5 | 18-14 | 0.5 | Brass Pre-Sn | 0.4 | 2500 | 3 to 4.3 |
| 32521824 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.4 | 2500 | 3 to 4.3 |
| 32521224 | 0.5 to 1.5 | 20-16 | 0.5 | Steel Ni | 0.4 | 2500 | 1.8 to 3.3 |
| 32521430 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.4 | 2500 | 1.8 to 3.3 |
| 32521201 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Pre-Sn | 0.4 | 2500 | 1.8 to 3.3 |
| 32521801 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.4 | 2500 | 3 to 4.3 |
| 32521830 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.4 | 2500 | 3 to 4.3 |
| 32521631 | 1 to 2.5 | 18-14 | 0.5 | Bronze Pre-Sn | 0.4 | 2500 | 3 to 4.3 |
| 32521230 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.4 | 2500 | 1.8 to 3.3 |
| 32521401 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Pre-Sn | 0.4 | 2500 | 1.8 to 3.3 |
| 32521624 | 1 to 2.5 | 18-14 | 0.5 | Steel Ni | 0.4 | 2500 | 3 to 4.3 |
| 32521831 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.4 | 2500 | 3 to 4.3 |
| 32521630 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.4 | 2500 | 3 to 4.3 |
| 32521431 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Pre-Sn | 0.4 | 2500 | 1.8 to 3.3 |
| 32521231 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Pre-Sn | 0.4 | 2500 | 1.8 to 3.3 |
| 32521200 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.4 | 2500 | 1.8 to 3.3 |
