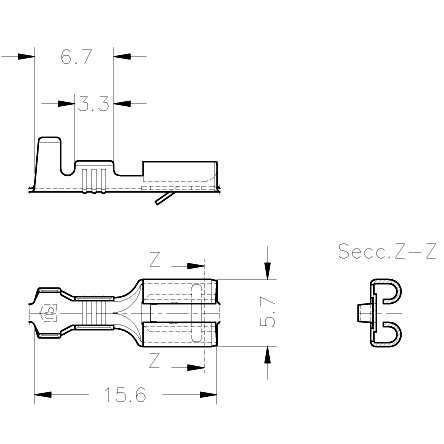

Receptacles 4.8 (.187) series, straight type for connector housings, standard
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32431624 | 1 to 2.5 | 18-14 | 0.5 | Steel Ni | 0.3 | 10000 | 3 to 3.4 |
| 32431630 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.3 | 10000 | 3 to 3.4 |
| 32431424 | 0.5 to 1 | 20-18 | 0.8 | Steel Ni | 0.3 | 10000 | 1.8 to 2.5 |
| 32431402 | 0.5 to 1 | 20-18 | 0.8 | Brass Sn | 0.3 | 10000 | 1.8 to 2.5 |
| 32431432 | 0.5 to 1 | 20-18 | 0.8 | Bronze Sn | 0.3 | 10000 | 1.8 to 2.5 |
| 32431224 | 0.5 to 1 | 20-18 | 0.5 | Steel Ni | 0.3 | 10000 | 1.8 to 2.5 |
| 32431400 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.3 | 10000 | 1.8 to 2.5 |
| 32431232 | 0.5 to 1 | 20-18 | 0.5 | Bronze Sn | 0.3 | 10000 | 1.8 to 2.5 |
| 32431230 | 0.5 to 1 | 20-18 | 0.5 | Bronze | 0.3 | 10000 | 1.8 to 2.5 |
| 32431824 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.3 | 10000 | 3 to 3.4 |
| 32431800 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.3 | 10000 | 3 to 3.4 |
| 32431832 | 1 to 2.5 | 18-14 | 0.8 | Bronze Sn | 0.3 | 10000 | 3 to 3.4 |
| 32431202 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.3 | 10000 | 1.8 to 2.5 |
| 32431602 | 1 to 2.5 | 18-14 | 0.5 | Brass Sn | 0.3 | 10000 | 3 to 3.4 |
| 32431802 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.3 | 10000 | 3 to 3.4 |
| 32431600 | 1 to 2.5 | 18-14 | 0.5 | Brass | 0.3 | 10000 | 3 to 3.4 |
| 32431430 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.3 | 10000 | 1.8 to 2.5 |
| 32431830 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.3 | 10000 | 3 to 3.4 |
| 32431632 | 1 to 2.5 | 18-14 | 0.5 | Bronze Sn | 0.3 | 10000 | 3 to 3.4 |
| 32431200 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.3 | 10000 | 1.8 to 2.5 |
