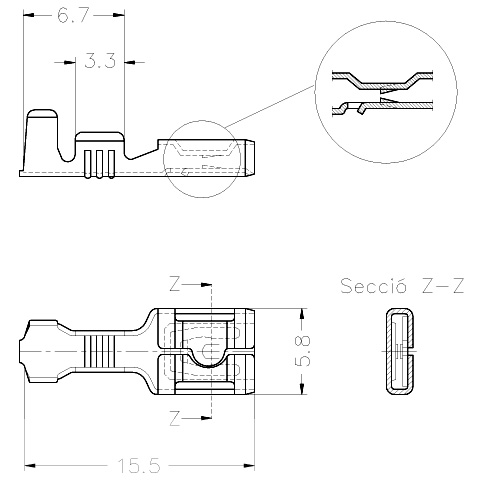

Receptacles 4.8 (.187) series, straight type, Low insertion
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32481731 | 1 to 2.5 | 18-14 | 0.5 | Bronze Pre-Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32481924 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.35 | 10000 | 3 to 4.3 | UL |
| 32081530 | 0.3 to 0.75 | 22-18 | 0.8 | Bronze | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32081331 | 0.3 to 0.75 | 22-18 | 0.5 | Bronze Pre-Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32481531 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32481300 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32481900 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32181324 | 0.5 to 1.5 | 20-16 | 0.5 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32081501 | 0.3 to 0.75 | 22-18 | 0.8 | Brass Pre-Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32481901 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32481902 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32081330 | 0.3 to 0.75 | 22-18 | 0.5 | Bronze | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32081500 | 0.3 to 0.75 | 22-18 | 0.8 | Brass | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32481700 | 1 to 2.5 | 18-14 | 0.5 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32481501 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32081524 | 0.3 to 0.75 | 22-18 | 0.8 | Steel Ni | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32081302 | 0.3 to 0.75 | 22-18 | 0.5 | Brass Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32081531 | 0.3 to 0.75 | 22-18 | 0.8 | Bronze Pre-Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32181331 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481931 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32081300 | 0.3 to 0.75 | 22-18 | 0.5 | Brass | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32181500 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481301 | 0.5 to 1 | 20-18 | 0.5 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32481724 | 1 to 2.5 | 18-14 | 0.5 | Steel Ni | 0.35 | 10000 | 3 to 4.3 | UL |
| 32181302 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481330 | 0.5 to 1 | 20-18 | 0.5 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32481324 | 0.5 to 1 | 20-18 | 0.5 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181531 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32181300 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481331 | 0.5 to 1 | 20-18 | 0.5 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181524 | 0.5 to 1.5 | 20-16 | 0.8 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481530 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181502 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481701 | 1 to 2.5 | 18-14 | 0.5 | Brass Pre-Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32481702 | 1 to 2.5 | 18-14 | 0.5 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32481524 | 0.5 to 1 | 20-18 | 0.8 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181301 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481500 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32481930 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32081324 | 0.3 to 0.75 | 22-18 | 0.5 | Steel Ni | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32481730 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32081301 | 0.3 to 0.75 | 22-18 | 0.5 | Brass Pre-Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32081502 | 0.3 to 0.75 | 22-18 | 0.8 | Brass Sn | 0.35 | 12000 | 1.4 to 2.4 | - |
| 32481302 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181330 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32481502 | 0.5 to 1 | 20-18 | 0.8 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32181530 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | - |
| 32181501 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 | - |
