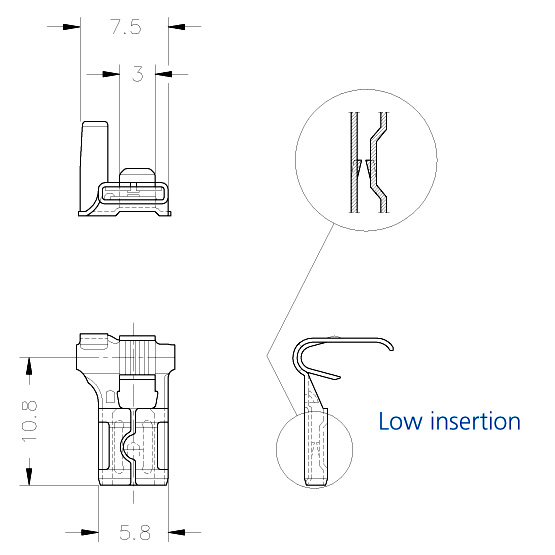

Receptacles 4.8 (.187) series, Flag type, Low insertion
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32581232 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581424 | 0.5 to 1.5 | 20-16 | 0.8 | Steel Ni | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581224 | 0.5 to 1.5 | 20-16 | 0.5 | Steel Ni | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581200 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581402 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581430 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581431 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Pre-Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581400 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581231 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Pre-Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581202 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581201 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Pre-Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581432 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581230 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.35 | 5000 | 1.9 to 3.3 | UL |
| 32581401 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Pre-Sn | 0.35 | 5000 | 1.9 to 3.3 | UL |
