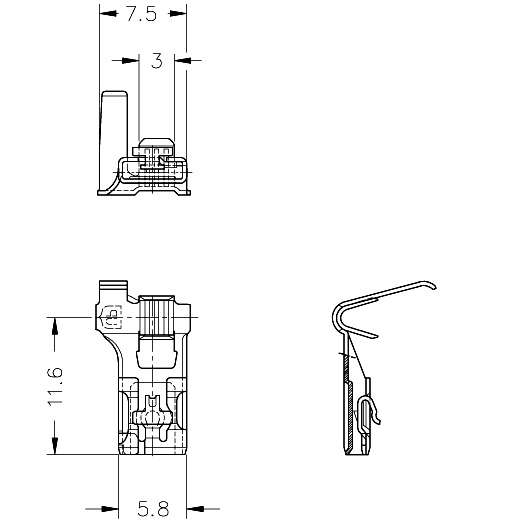

Receptacles 4.8 (.187) series, Flag type, Self-locking TP design
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32571631 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Pre-Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32571731 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Pre-Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32571601 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Pre-Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32571700 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.35 | 4500 | 1.9 to 3.3 |
| 32571730 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.35 | 4500 | 1.9 to 3.3 |
| 32571701 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Pre-Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32571600 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.35 | 4500 | 1.9 to 3.3 |
| 32571630 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.35 | 4500 | 1.9 to 3.3 |
