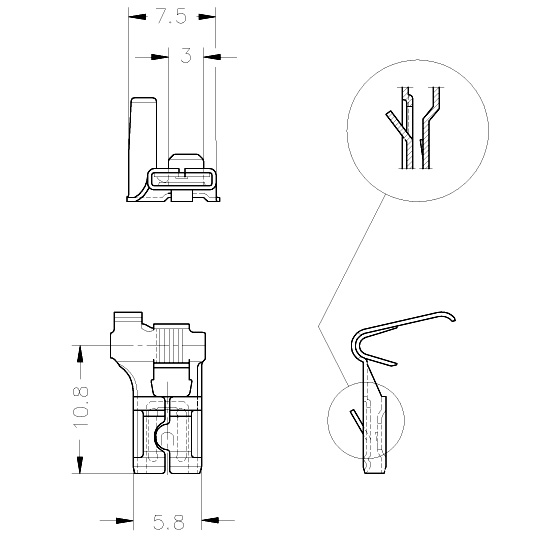

Receptacles 4.8 (.187) series, Flag type for connector housings, Low insertion. With upper dimple
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32531402 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32531430 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.35 | 4500 | 1.9 to 3.3 |
| 32531232 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32531400 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.35 | 4500 | 1.9 to 3.3 |
| 32531200 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.35 | 4500 | 1.9 to 3.3 |
| 32531224 | 0.5 to 1.5 | 20-16 | 0.5 | Steel Ni | 0.35 | 4500 | 1.9 to 3.3 |
| 32531230 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.35 | 4500 | 1.9 to 3.3 |
| 32531424 | 0.5 to 1.5 | 20-16 | 0.8 | Steel Ni | 0.35 | 4500 | 1.9 to 3.3 |
| 32531202 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Sn | 0.35 | 4500 | 1.9 to 3.3 |
| 32531432 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Sn | 0.35 | 4500 | 1.9 to 3.3 |
