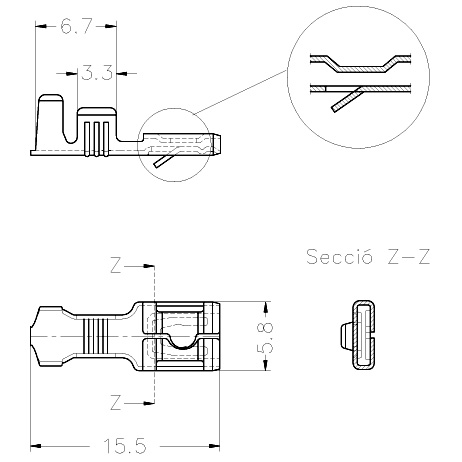

Receptacles 4.8 (.187) series, straight type for connector housings, Low insertion force (2)

Terminal version

On reel

Terminal type

Receptacles

Mating tab width

4.8

Crimping press

On request

Partnumber	Wire size	AWG	Tab thickn.	Material	Mat. thickn.	Parts x reel	Ø Insul.	Approvals

32411524	0.5 to 1	20-18	0.8	Steel Ni	0.35	10000	1.8 to 2.5	UL
32411930	1 to 2.5	18-14	0.8	Bronze	0.35	9000	3 to 4.3	-
32411302	0.5 to 1	20-18	0.5	Brass Sn	0.35	10000	1.8 to 2.5	-
32411702	1 to 2.5	18-14	0.5	Brass Sn	0.35	9000	3 to 4.3	-
32411924	1 to 2.5	18-14	0.8	Steel Ni	0.35	9000	3 to 4.3	-
32411324	0.5 to 1	20-18	0.5	Steel Ni	0.35	10000	1.8 to 2.5	-
32411531	0.5 to 1	20-18	0.8	Bronze Pre-Sn	0.35	10000	1.8 to 2.5	UL
32411502	0.5 to 1	20-18	0.8	Brass Sn	0.35	10000	1.8 to 2.5	UL
32411931	1 to 2.5	18-14	0.8	Bronze Pre-Sn	0.35	9000	3 to 4.3	-
32411301	0.5 to 1	20-18	0.5	Brass Pre-Sn	0.35	10000	1.8 to 2.5	-
32411902	1 to 2.5	18-14	0.8	Brass Sn	0.35	9000	3 to 4.3	-
32411530	0.5 to 1	20-18	0.8	Bronze	0.35	10000	1.8 to 2.5	UL
32411300	0.5 to 1	20-18	0.5	Brass	0.35	10000	1.8 to 2.5	-
32411700	1 to 2.5	18-14	0.5	Brass	0.35	9000	3 to 4.3	-
32411701	1 to 2.5	18-14	0.5	Brass Pre-Sn	0.35	9000	3 to 4.3	-
32411724	1 to 2.5	18-14	0.5	Steel Ni	0.35	9000	3 to 4.3	-
32411501	0.5 to 1	20-18	0.8	Brass Pre-Sn	0.35	10000	1.8 to 2.5	UL
32411500	0.5 to 1	20-18	0.8	Brass	0.35	10000	1.8 to 2.5	UL
32411730	1 to 2.5	18-14	0.5	Bronze	0.35	9000	3 to 4.3	-
32411331	0.5 to 1	20-18	0.5	Bronze Pre-Sn	0.35	10000	1.8 to 2.5	-
32411901	1 to 2.5	18-14	0.8	Brass Pre-Sn	0.35	9000	3 to 4.3	-
32411731	1 to 2.5	18-14	0.5	Bronze Pre-Sn	0.35	9000	3 to 4.3	-
32411330	0.5 to 1	20-18	0.5	Bronze	0.35	10000	1.8 to 2.5	-
32411900	1 to 2.5	18-14	0.8	Brass	0.35	9000	3 to 4.3	-

We would be delighted to assemble these products for you.
