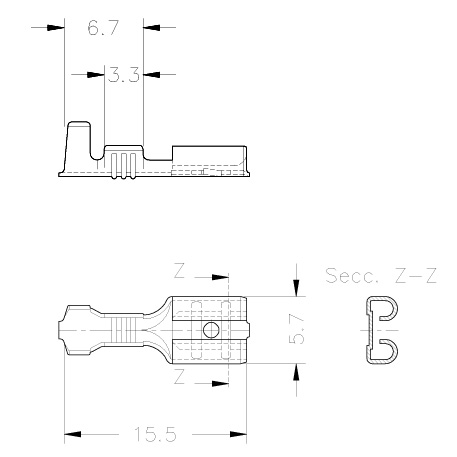

Receptacles 4.8 (.187) series, straight type, standard terminals
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32441632 | 1 to 2.5 | 18-14 | 0.5 | Bronze Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441802 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441832 | 1 to 2.5 | 18-14 | 0.8 | Bronze Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441600 | 1 to 2.5 | 18-14 | 0.5 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441624 | 1 to 2.5 | 18-14 | 0.5 | Steel Ni | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441224 | 0.5 to 1 | 20-18 | 0.5 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441602 | 1 to 2.5 | 18-14 | 0.5 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441430 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441230 | 0.5 to 1 | 20-18 | 0.5 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441402 | 0.5 to 1 | 20-18 | 0.8 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441800 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441232 | 0.5 to 1 | 20-18 | 0.5 | Bronze Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441432 | 0.5 to 1 | 20-18 | 0.8 | Bronze Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441824 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441400 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441830 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441630 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32441200 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441202 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32441424 | 0.5 to 1 | 20-18 | 0.8 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 | UL |
