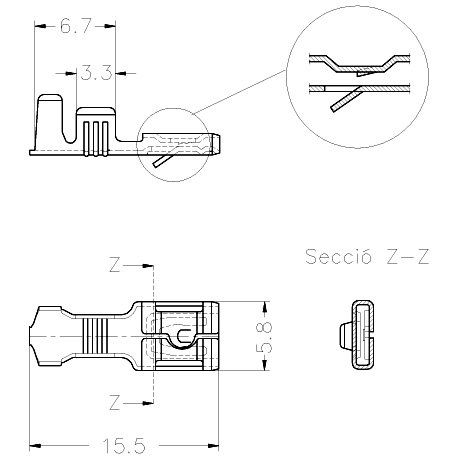

Receptacles 4.8 (.187) series, straight type for connector housings, Low insertion force. With upper dimple
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. |
|---|---|---|---|---|---|---|---|
| 32411602 | 1 to 2.5 | 18-14 | 0.5 | Brass Sn | 0.35 | 9000 | 3 to 3.4 |
| 32411631 | 1 to 2.5 | 18-14 | 0.5 | Bronze Sn | 0.35 | 9000 | 3 to 3.4 |
| 32011201 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32011402 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32411630 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.35 | 9000 | 3 to 3.4 |
| 32011224 | 0.5 to 1.5 | 20-16 | 0.5 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 |
| 32011424 | 0.5 to 1.5 | 20-16 | 0.8 | Steel Ni | 0.35 | 10000 | 1.8 to 2.5 |
| 32411801 | 1 to 2.5 | 18-14 | 0.8 | Brass Pre-Sn | 0.35 | 9000 | 3 to 3.4 |
| 32411601 | 1 to 2.5 | 18-14 | 0.5 | Brass Pre-Sn | 0.35 | 9000 | 3 to 3.4 |
| 32011431 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32411600 | 1 to 2.5 | 18-14 | 0.5 | Brass | 0.35 | 9000 | 3 to 3.4 |
| 32011430 | 0.5 to 1.5 | 20-16 | 0.8 | Bronze | 0.35 | 10000 | 1.8 to 2.5 |
| 32011202 | 0.5 to 1.5 | 20-16 | 0.5 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32011200 | 0.5 to 1.5 | 20-16 | 0.5 | Brass | 0.35 | 10000 | 1.8 to 2.5 |
| 32411831 | 1 to 2.5 | 18-14 | 0.8 | Bronze Pre-Sn | 0.35 | 9000 | 3 to 3.4 |
| 32011401 | 0.5 to 1.5 | 20-16 | 0.8 | Brass Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32411800 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.35 | 9000 | 3 to 3.4 |
| 32411802 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.35 | 9000 | 3 to 3.4 |
| 32411824 | 1 to 2.5 | 18-14 | 0.8 | Steel Ni | 0.35 | 9000 | 3 to 3.4 |
| 32011231 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze Pre-Sn | 0.35 | 10000 | 1.8 to 2.5 |
| 32011400 | 0.5 to 1.5 | 20-16 | 0.8 | Brass | 0.35 | 10000 | 1.8 to 2.5 |
| 32011230 | 0.5 to 1.5 | 20-16 | 0.5 | Bronze | 0.35 | 10000 | 1.8 to 2.5 |
| 32411830 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.35 | 9000 | 3 to 3.4 |
| 32411624 | 1 to 2.5 | 18-14 | 0.5 | Steel Ni | 0.35 | 9000 | 3 to 3.4 |
