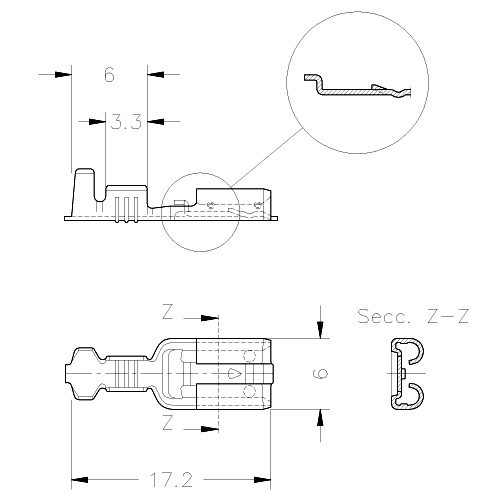

Receptacles 4.8 (.187) series, straight type, Standard self-locking, manuel disconnection
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
4.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32471530 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471730 | 1 to 2.5 | 18-14 | 0.5 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471732 | 1 to 2.5 | 18-14 | 0.5 | Bronze Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471930 | 1 to 2.5 | 18-14 | 0.8 | Bronze | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471900 | 1 to 2.5 | 18-14 | 0.8 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471932 | 1 to 2.5 | 18-14 | 0.8 | Bronze Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471700 | 1 to 2.5 | 18-14 | 0.5 | Brass | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471332 | 0.5 to 1 | 20-18 | 0.5 | Bronze Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471702 | 1 to 2.5 | 18-14 | 0.5 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471330 | 0.5 to 1 | 20-18 | 0.5 | Bronze | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471902 | 1 to 2.5 | 18-14 | 0.8 | Brass Sn | 0.35 | 10000 | 3 to 4.3 | UL |
| 32471500 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471532 | 0.5 to 1 | 20-18 | 0.8 | Bronze Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471502 | 0.5 to 1 | 20-18 | 0.8 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471302 | 0.5 to 1 | 20-18 | 0.5 | Brass Sn | 0.35 | 10000 | 1.8 to 2.5 | UL |
| 32471300 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.35 | 10000 | 1.8 to 2.5 | UL |
