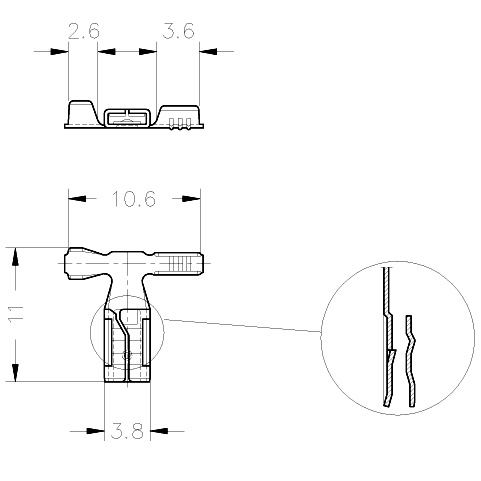

Receptacles 2.8 (.110) series, straight type for connector housings, Low insertion force. For DIN tab terminals
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
2.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32140430 | 0.1 to 0.3 | 26-22 | 0.8 | Bronze | 0.3 | 10000 | 1 to 1.8 | - |
| 32141031 | 0.5 to 1 | 20-18 | 0.8 | Bronze Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32140801 | 0.5 to 1 | 20-18 | 0.5 | Brass Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | - |
| 32140831 | 0.5 to 1 | 20-18 | 0.5 | Bronze Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | - |
| 32140231 | 0.1 to 0.3 | 26-22 | 0.5 | Bronze Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32140401 | 0.1 to 0.3 | 26-22 | 0.8 | Brass Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32140201 | 0.1 to 0.3 | 26-22 | 0.5 | Brass Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32141000 | 0.5 to 1 | 20-18 | 0.8 | Brass | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32140800 | 0.5 to 1 | 20-18 | 0.5 | Brass | 0.3 | 10000 | 1.8 to 2.5 | - |
| 32140230 | 0.1 to 0.3 | 26-22 | 0.5 | Bronze | 0.3 | 10000 | 1 to 1.8 | - |
| 32140200 | 0.1 to 0.3 | 26-22 | 0.5 | Brass | 0.3 | 10000 | 1 to 1.8 | - |
| 32141001 | 0.5 to 1 | 20-18 | 0.8 | Brass Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32141030 | 0.5 to 1 | 20-18 | 0.8 | Bronze | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32140400 | 0.1 to 0.3 | 26-22 | 0.8 | Brass | 0.3 | 10000 | 1 to 1.8 | - |
| 32140431 | 0.1 to 0.3 | 26-22 | 0.8 | Bronze Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32140830 | 0.5 to 1 | 20-18 | 0.5 | Bronze | 0.3 | 10000 | 1.8 to 2.5 | - |
