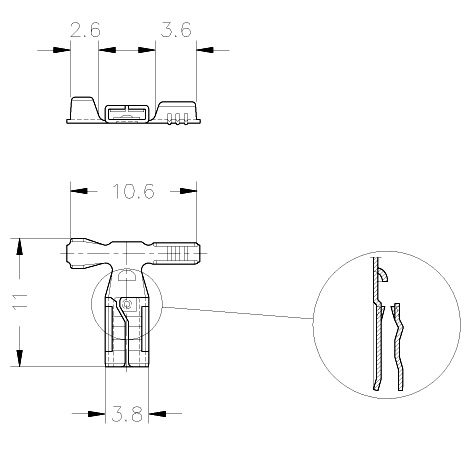

Receptacles 2.8 (.110) series, straight type for connector housings, low insertion force. Rear Dimple
Terminal version
On reel
Terminal type
Receptacles
Mating tab width
2.8
Crimping press
On request
| Partnumber | Wire size | AWG | Tab thickn. | Material | Mat. thickn. | Parts x reel | Ø Insul. | Approvals |
|---|---|---|---|---|---|---|---|---|
| 32541031 | 0.5 to 1 | 1.8-2.5 | 0.8 | Bronze Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540400 | 0.1 to 0.3 | 26-22 | 0.8 | Brass | 0.3 | 10000 | 1 to 1.8 | - |
| 32540231 | 0.1 to 0.3 | 26-22 | 0.5 | Bronze Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32540801 | 0.5 to 1 | 1.8-2.5 | 0.5 | Brass Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32541000 | 0.5 to 1 | 1.8-2.5 | 0.8 | Brass | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540230 | 0.1 to 0.3 | 26-22 | 0.5 | Bronze | 0.3 | 10000 | 1 to 1.8 | - |
| 32540431 | 0.1 to 0.3 | 26-22 | 0.8 | Bronze Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32540430 | 0.1 to 0.3 | 26-22 | 0.8 | Bronze | 0.3 | 10000 | 1 to 1.8 | - |
| 32541030 | 0.5 to 1 | 1.8-2.5 | 0.8 | Bronze | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540831 | 0.5 to 1 | 1.8-2.5 | 0.5 | Bronze Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540830 | 0.5 to 1 | 1.8-2.5 | 0.5 | Bronze | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540401 | 0.1 to 0.3 | 26-22 | 0.8 | Brass Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32540201 | 0.1 to 0.3 | 26-22 | 0.5 | Brass Pre-Sn | 0.3 | 10000 | 1 to 1.8 | - |
| 32540200 | 0.1 to 0.3 | 26-22 | 0.5 | Brass | 0.3 | 10000 | 1 to 1.8 | - |
| 32541001 | 0.5 to 1 | 1.8-2.5 | 0.8 | Brass Pre-Sn | 0.3 | 10000 | 1.8 to 2.5 | UL |
| 32540800 | 0.5 to 1 | 1.8-2.5 | 0.5 | Brass | 0.3 | 10000 | 1.8 to 2.5 | UL |
