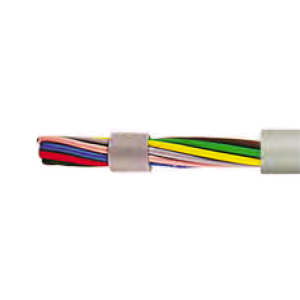

LiHH multicore cables, halogen-free
Nom. voltage
250
Temperature
-5 to 70°C
Cable type
Multicore cable
Test voltage
0.14 mm2: 1200 V; >0.14mm2: 1500
Norm
LiHH, DIN VDE
Conductor size
0.14-0.34 mm2
No. conductors
2 to 25
Insulation colour
Grey, RAL 7001
Core colours
DIN 47100
Temperature max.
70°C
Insulation properties
Flame retardant Halogen-free
Peak voltage
0.14 mm2: 350V; >0.14mm2: 500 V
| Partnumber | Number inner cores | Conductor size mm2 |
|---|---|---|
| 47200125 | 25 | 0.14 |
| 47200306 | 6 | 0.34 |
| 47200305 | 5 | 0.34 |
| 47200106 | 6 | 0.14 |
| 47200109 | 9 | 0.14 |
| 47200102 | 2 | 0.14 |
| 47200303 | 3 | 0.34 |
| 47200121 | 21 | 0.14 |
| 47200207 | 7 | 0.25 |
| 47200103 | 3 | 0.14 |
| 47200304 | 4 | 0.34 |
| 47200105 | 5 | 0.14 |
| 47200114 | 14 | 0.14 |
| 47200116 | 16 | 0.14 |
| 47200210 | 10 | 0.25 |
| 47200310 | 10 | 0.34 |
| 47200206 | 6 | 0.25 |
| 47200308 | 8 | 0.34 |
| 47200224 | 24 | 0.25 |
| 47200212 | 12 | 0.25 |
| 47200218 | 18 | 0.25 |
| 47200307 | 7 | 0.34 |
| 47200220 | 20 | 0.25 |
| 47200321 | 21 | 0.34 |
| 47200108 | 8 | 0.14 |
| 47200316 | 16 | 0.34 |
| 47200214 | 14 | 0.25 |
| 47200208 | 8 | 0.25 |
| 47200221 | 21 | 0.25 |
| 47200112 | 12 | 0.14 |
| 47200107 | 7 | 0.14 |
| 47200215 | 15 | 0.25 |
| 47200302 | 2 | 0.34 |
| 47200216 | 16 | 0.25 |
| 47200324 | 24 | 0.34 |
| 47200320 | 20 | 0.34 |
| 47200120 | 20 | 0.14 |
| 47200104 | 4 | 0.14 |
| 47200312 | 12 | 0.34 |
| 47200204 | 4 | 0.25 |
| 47200110 | 10 | 0.14 |
| 47200202 | 2 | 0.25 |
| 47200205 | 5 | 0.25 |
| 47200314 | 14 | 0.34 |
| 47200203 | 3 | 0.25 |
