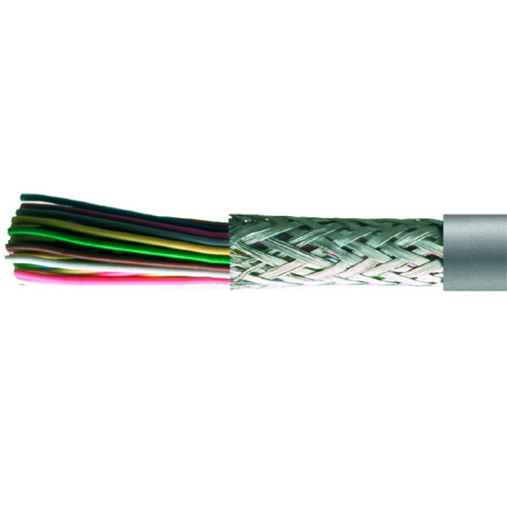

LiYCY multicore cables, shielded
Nom. voltage
250
Temperature
-5 to 70°C
Cable type
Multicore cable
Norm
LiYCY, DIN VDE
Conductor size
0.14-0.34 mm2
No. conductors
2 to 61
Technical characteristics
Shielded
Insulation colour
Grey, RAL 7001
Core colours
DIN 47100
Norm & Approvals
LiYY, LiYCY
Insulation material
PVC
Temperature max.
70°C
Insulation properties
Flame retardant Self-extinguishing
Peak voltage
0.14 mm2: 350V; >0.14mm2: 500 V
Test volt. core/core
0.14 mm2: 1200 V; >0.14mm2: 1500 V
Test volt. core/sheath
2000 V
Shielding
Copper braiding 85 perc.
| Partnumber | Number inner cores | Conductor size mm2 |
|---|---|---|
| 47100303 | 3 | 0.34 |
| 47100340 | 40 | 0.34 |
| 47100104 | 4 | 0.14 |
| 47100332 | 32 | 0.34 |
| 47100112 | 12 | 0.14 |
| 47100250 | 50 | 0.25 |
| 47100118 | 18 | 0.14 |
| 47100221 | 21 | 0.25 |
| 47100314 | 14 | 0.34 |
| 47100204 | 4 | 0.25 |
| 47100207 | 7 | 0.25 |
| 47100107 | 7 | 0.14 |
| 47100208 | 8 | 0.25 |
| 47100110 | 10 | 0.14 |
| 47100228 | 28 | 0.25 |
| 47100236 | 36 | 0.25 |
| 47100318 | 18 | 0.34 |
| 47100302 | 2 | 0.34 |
| 47100150 | 50 | 0.14 |
| 47100321 | 21 | 0.34 |
| 47100316 | 16 | 0.34 |
| 47100205 | 5 | 0.25 |
| 47100307 | 7 | 0.34 |
| 47100261 | 61 | 0.25 |
| 47100308 | 8 | 0.34 |
| 47100136 | 36 | 0.14 |
| 47100202 | 2 | 0.25 |
| 47100225 | 25 | 0.25 |
| 47100132 | 32 | 0.14 |
| 47100105 | 5 | 0.14 |
| 47100144 | 44 | 0.14 |
| 47100232 | 32 | 0.25 |
| 47100103 | 3 | 0.14 |
| 47100336 | 36 | 0.34 |
| 47100212 | 12 | 0.25 |
| 47100244 | 44 | 0.25 |
| 47100328 | 28 | 0.34 |
| 47100203 | 3 | 0.25 |
| 47100140 | 40 | 0.14 |
| 47100305 | 5 | 0.34 |
| 47100304 | 4 | 0.34 |
| 47100102 | 2 | 0.14 |
| 47100310 | 10 | 0.34 |
| 47100121 | 21 | 0.14 |
| 47100240 | 40 | 0.25 |
| 47100116 | 16 | 0.14 |
| 47100344 | 44 | 0.34 |
| 47100210 | 10 | 0.25 |
| 47100108 | 8 | 0.14 |
| 47100125 | 25 | 0.14 |
| 47100306 | 6 | 0.34 |
| 47100216 | 16 | 0.25 |
| 47100350 | 50 | 0.34 |
| 47100128 | 28 | 0.14 |
| 47100325 | 25 | 0.34 |
| 47100218 | 18 | 0.25 |
| 47100312 | 12 | 0.34 |
| 47100214 | 14 | 0.25 |
