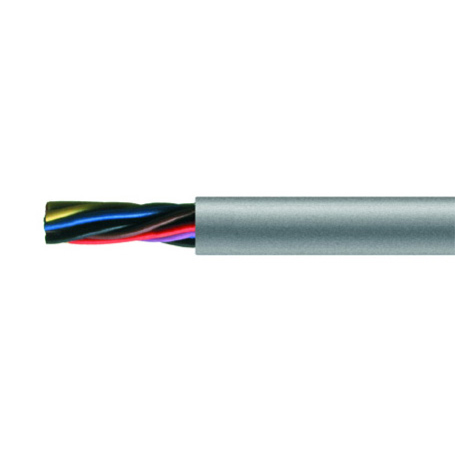

LiYY multicore cables, twisted pairs
Nom. voltage
250
Temperature
-5 to 70°C
Cable type
Multicore cable
Norm
LiYY, DIN VDE
Conductor size
0.14-0.25 mm2
No. conductors
4 to 100
Technical characteristics
Twisted pairs
Insulation colour
Grey, RAL 7032
Core colours
DIN 47100
Norm & Approvals
LiYY, LiYCY
Insulation material
PVC
Temperature max.
70°C
Insulation properties
Flame retardant Self-extinguishing
Peak voltage
0.14 mm2: 350V; >0.14mm2: 500 V
Test volt. core/core
0.14 mm2: 1200 V; >0.14mm2: 1500 V
Test volt. core/sheath
2000 V
| Partnumber | Number inner cores | Conductor size mm2 |
|---|---|---|
| 47150136 | 36 | 0.14 |
| 47150110 | 10 | 0.14 |
| 47150212 | 12 | 0.25 |
| 47150112 | 12 | 0.14 |
| 47150120 | 20 | 0.14 |
| 47150132 | 32 | 0.14 |
| 47150206 | 6 | 0.25 |
| 47150104 | 4 | 0.14 |
| 47150216 | 16 | 0.25 |
| 47150128 | 28 | 0.14 |
| 47150220 | 20 | 0.25 |
| 47150208 | 8 | 0.25 |
| 47150204 | 4 | 0.25 |
| 47150108 | 8 | 0.14 |
| 47150150 | 50 | 0.14 |
| 47150160 | 60 | 0.14 |
| 47150199 | 100 | 0.14 |
| 47150106 | 6 | 0.14 |
| 47150124 | 24 | 0.14 |
