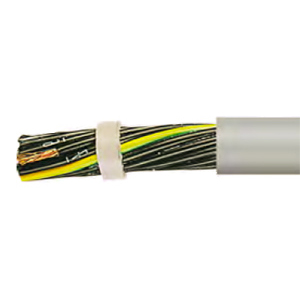

LiYY-JZ multicore cables, with yellow/green core
Nom. voltage
300/500
Temperature
-5 to 70°C
Cable type
Multicore cable
Norm
LiYY-JZ, DIN VDE
Conductor size
0.5-2.5 mm2
No. conductors
2 to 61
Insulation colour
Grey, RAL 7001
Core colours
Black numbered
Norm & Approvals
LiYY, LiYCY
Insulation material
PVC
Temperature max.
70°C
Insulation properties
Flame retardant Self-extinguishing
| Partnumber | Number inner cores | Conductor size mm2 |
|---|---|---|
| 47020716 | 16 | 0.75 |
| 47022518 | 18 | 2.5 |
| 47020507 | 7 | 0.5 |
| 47020761 | 61 | 0.75 |
| 47022503 | 3 | 2.5 |
| 47021509 | 9 | 1.5 |
| 47021504 | 4 | 1.5 |
| 47021008 | 8 | 1 |
| 47021003 | 3 | 1 |
| 47020710 | 10 | 0.75 |
| 47021510 | 10 | 1.5 |
| 47021019 | 19 | 1 |
| 47021034 | 34 | 1 |
| 47021007 | 7 | 1 |
| 47020718 | 18 | 0.75 |
| 47021025 | 25 | 1 |
| 47022508 | 8 | 2.5 |
| 47020734 | 34 | 0.75 |
| 47020702 | 2 | 0.75 |
| 47020712 | 12 | 0.75 |
| 47021534 | 34 | 1.5 |
| 47022510 | 10 | 2.5 |
| 47020514 | 14 | 0.5 |
| 47020518 | 18 | 0.5 |
| 47021006 | 6 | 1 |
| 47021512 | 12 | 1.5 |
| 47020504 | 4 | 0.5 |
| 47020505 | 5 | 0.5 |
| 47021525 | 25 | 1.5 |
| 47021002 | 2 | 1 |
| 47021020 | 20 | 1 |
| 47020703 | 3 | 0.75 |
| 47021042 | 42 | 1 |
| 47021507 | 7 | 1.5 |
| 47020704 | 4 | 0.75 |
| 47020705 | 5 | 0.75 |
| 47022502 | 2 | 2.5 |
| 47021061 | 61 | 1 |
| 47020525 | 25 | 0.5 |
| 47021503 | 3 | 1.5 |
| 47020502 | 2 | 0.5 |
| 47020707 | 7 | 0.75 |
| 47022504 | 4 | 2.5 |
| 47021502 | 2 | 1.5 |
| 47021521 | 21 | 1.5 |
| 47021010 | 10 | 1 |
| 47020534 | 34 | 0.5 |
| 47021041 | 41 | 1 |
| 47022512 | 12 | 2.5 |
| 47020512 | 12 | 0.5 |
| 47021508 | 8 | 1.5 |
| 47020741 | 41 | 0.75 |
| 47021005 | 5 | 1 |
| 47021012 | 12 | 1 |
| 47020750 | 50 | 0.75 |
| 47021505 | 5 | 1.5 |
| 47020721 | 21 | 0.75 |
| 47022505 | 5 | 2.5 |
| 47021027 | 27 | 1 |
| 47021561 | 61 | 1.5 |
| 47021542 | 42 | 1.5 |
| 47020725 | 25 | 0.75 |
| 47020510 | 10 | 0.5 |
| 47021550 | 50 | 1.5 |
| 47021014 | 14 | 1 |
| 47022507 | 7 | 2.5 |
| 47021518 | 18 | 1.5 |
| 47021065 | 65 | 1 |
| 47022525 | 25 | 2.5 |
| 47021016 | 16 | 1 |
| 47020719 | 19 | 0.75 |
| 47021018 | 18 | 1 |
| 47021516 | 16 | 1.5 |
| 47021004 | 4 | 1 |
| 47020503 | 3 | 0.5 |
| 47020521 | 21 | 0.5 |
| 47021514 | 14 | 1.5 |
| 47021050 | 50 | 1 |
| 47020708 | 8 | 0.75 |
