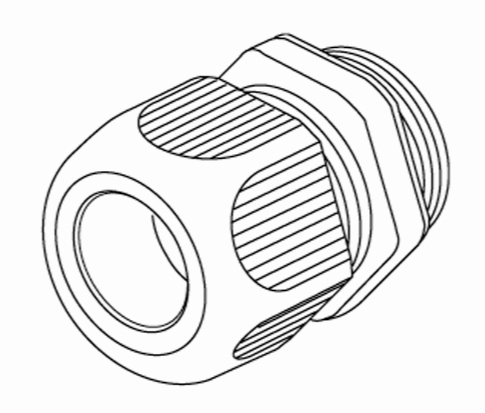

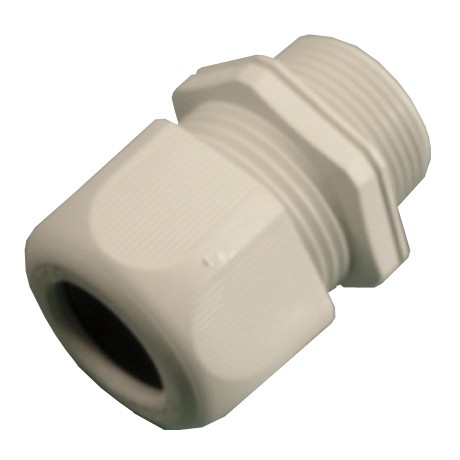

Plastic (polyamide) cable glands, PG connection thread, black RAL 9005
Application
Cable glands
PG or metric
PG
Material
Polyamide
Strain relief
Strain relief
Protection
IP 68
Colour
Black
Technical specs
Glow wire test Halogen-free UL 94 V-0
| Partnumber | Cable diameter | Size |
|---|---|---|
| mm | ||
| 18010166 | 17 to 25 | PG29 |
| 18010201 | 37 to 44 | PG48 |
| 18010157 | 12 to 18 | PG21 |
| 18010107 | 3 to 6.5 | PG 7 |
| 18010114 | 4 to 8 | PG 9 |
| 18010131 | 6 to 12 | PG13.5 |
| 18010158 | 5 to 10 | PG11 |
| 18010182 | 32 to 38 | PG42 |
| 18010149 | 9 to 14 | PG16 |
| 18010174 | 20 to 32 | PG36 |
