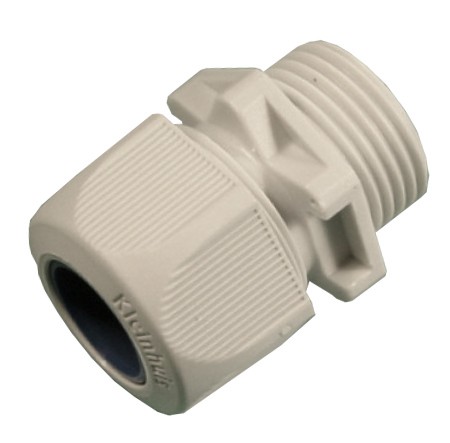

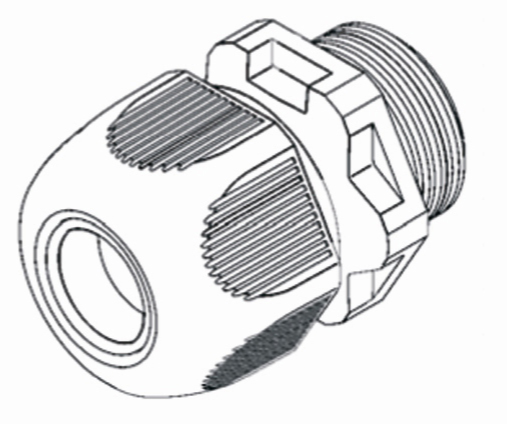

Plastic (polystyrol) metric cable glands, DIN EN 50262
Application
Cable glands
PG or metric
Metric
Material
Polystyrol
Protection
IP 54 IP 65 sealing ring
Colour
Grey
Technical specs
Halogen-free
| Partnumber | Cable diameter | Size |
|---|---|---|
| mm | ||
| 18020016 | 5 to 9 | M16 |
| 18020050 | 25 to 34 | M50 |
| 18020012 | 3 to 6 | M12 |
| 18020063 | 32 to 43 | M63 |
| 18020032 | 14 to 20 | M32 |
| 18020025 | 10 to 16 | M25 |
| 18020020 | 8 to 13 | M20 |
| 18020040 | 19 to 27 | M40 |
