Fork form (3)
Terminal version
On reel
Terminal type

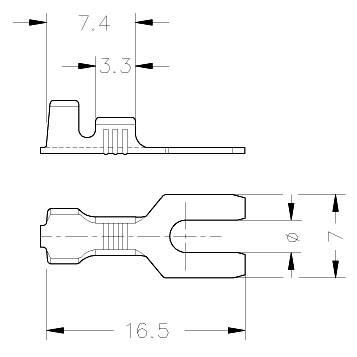

Tongue type, fork form
Crimping press
On request
| Partnumber | Wire size | AWG | Material | Mat. thickn. | Parts x reel | Ø Insul. | Ø |
|---|---|---|---|---|---|---|---|
| 32381830 | 0.5 to 1 | 20-18 | Bronze | 0.5 | 8000 | 1.8 to 2.5 | 3.2 |
| 32381832 | 0.5 to 1 | 20-18 | Bronze Sn | 0.5 | 8000 | 1.8 to 2.5 | 3.2 |
| 32382000 | 0.5 to 1 | 20-18 | Brass | 0.5 | 8000 | 1.8 to 2.5 | 3.7 |
| 32381802 | 0.5 to 1 | 20-18 | Brass Sn | 0.5 | 8000 | 1.8 to 2.5 | 3.2 |
| 32382002 | 0.5 to 1 | 20-18 | Brass Sn | 0.5 | 8000 | 1.8 to 2.5 | 3.7 |
| 32381630 | 0.5 to 1 | 20-18 | Bronze | 0.5 | 8000 | 1.8 to 2.5 | 2.7 |
| 32382032 | 0.5 to 1 | 20-18 | Bronze Sn | 0.5 | 8000 | 1.8 to 2.5 | 3.7 |
| 32382030 | 0.5 to 1 | 20-18 | Bronze | 0.5 | 8000 | 1.8 to 2.5 | 3.7 |
| 32381632 | 0.5 to 1 | 20-18 | Bronze Sn | 0.5 | 8000 | 1.8 to 2.5 | 2.7 |
| 32381800 | 0.5 to 1 | 20-18 | Brass | 0.5 | 8000 | 1.8 to 2.5 | 3.2 |
| 32381602 | 0.5 to 1 | 20-18 | Brass Sn | 0.5 | 8000 | 1.8 to 2.5 | 2.7 |
| 32381600 | 0.5 to 1 | 20-18 | Brass | 0.5 | 8000 | 1.8 to 2.5 | 2.7 |
